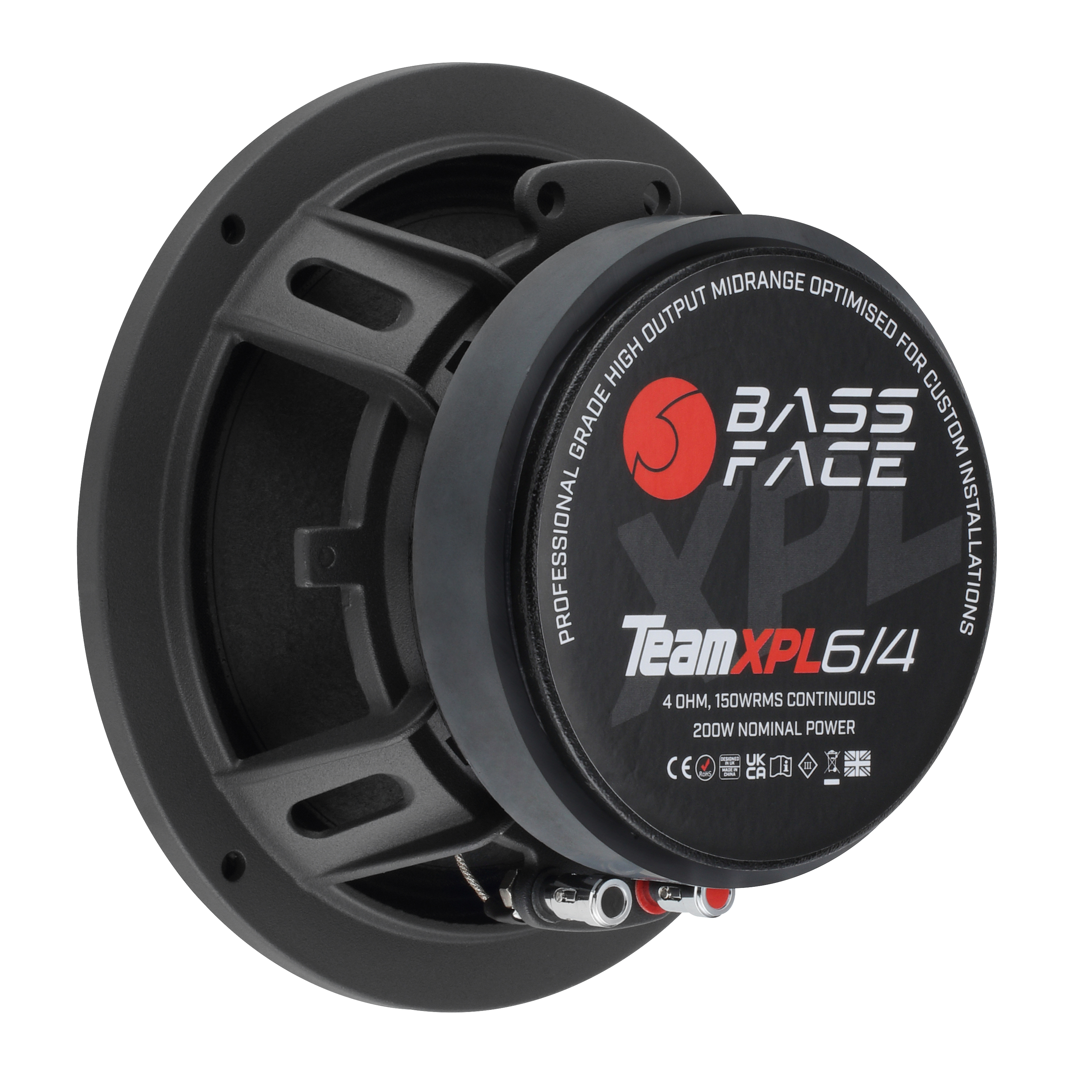

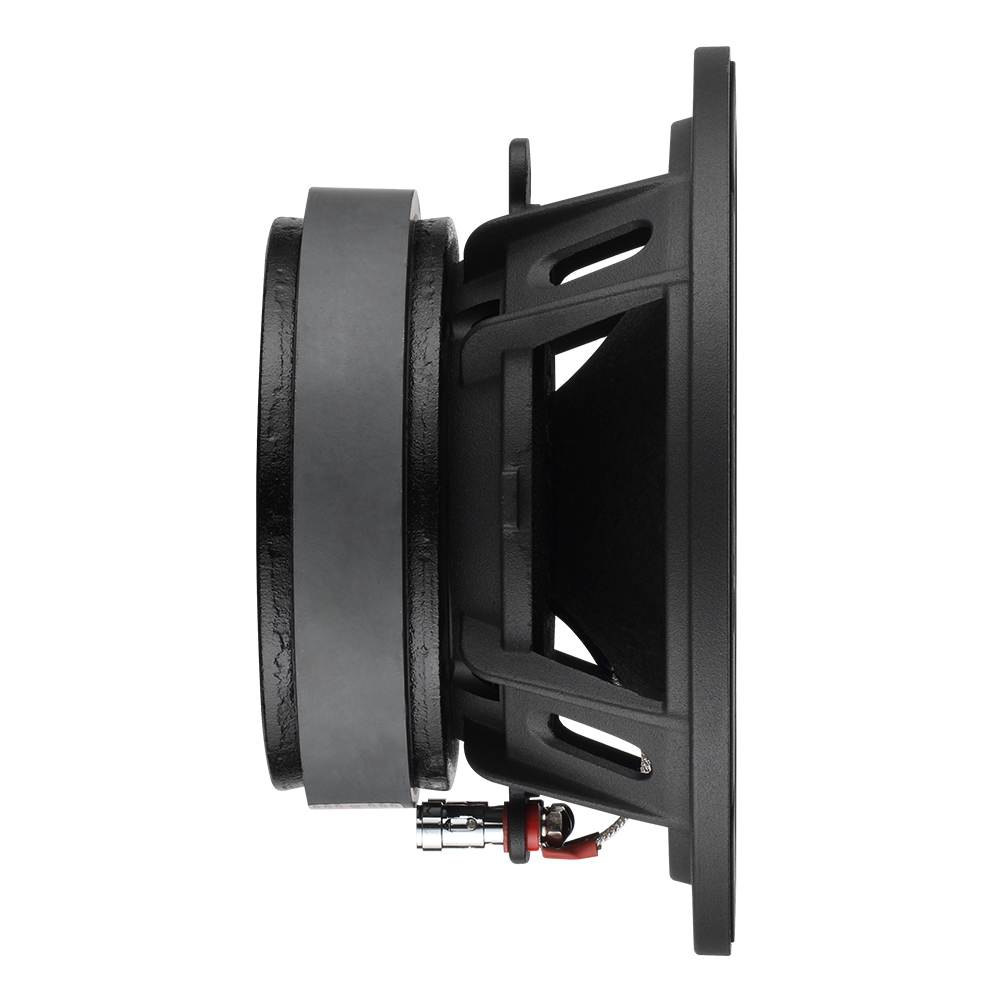

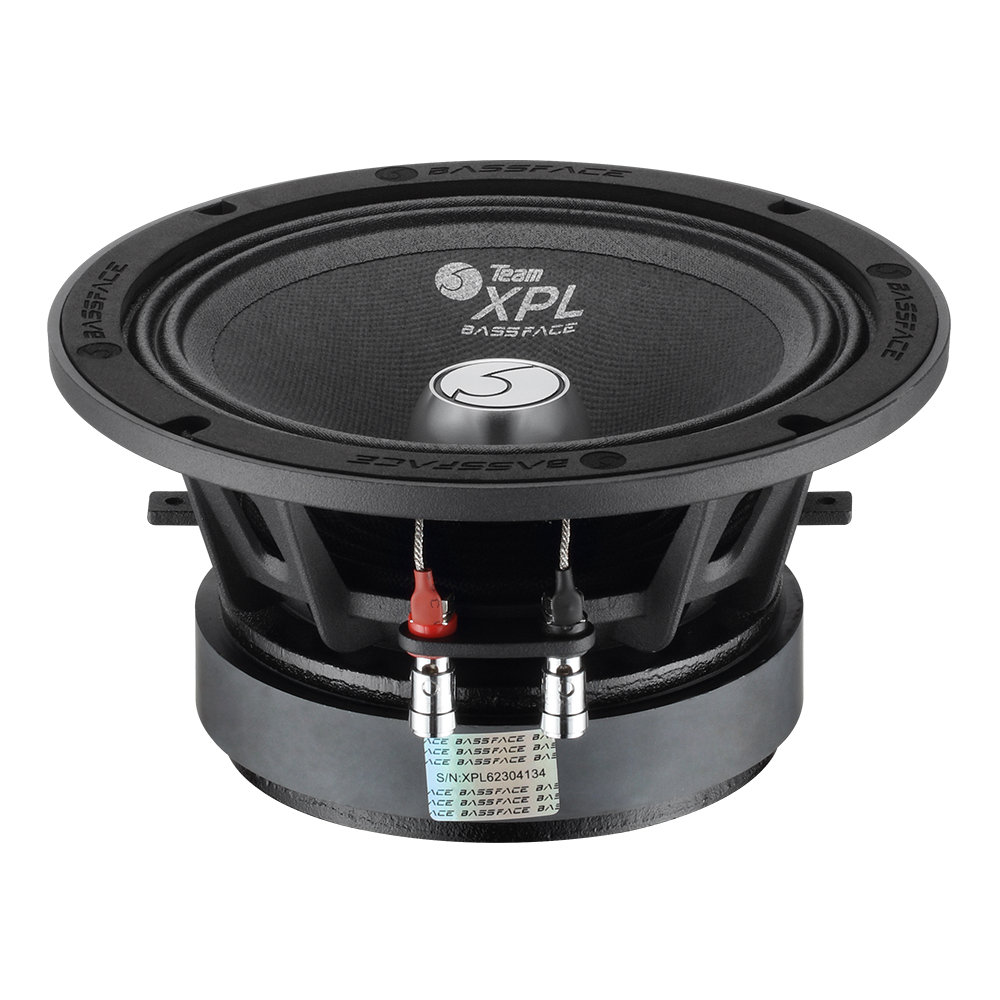

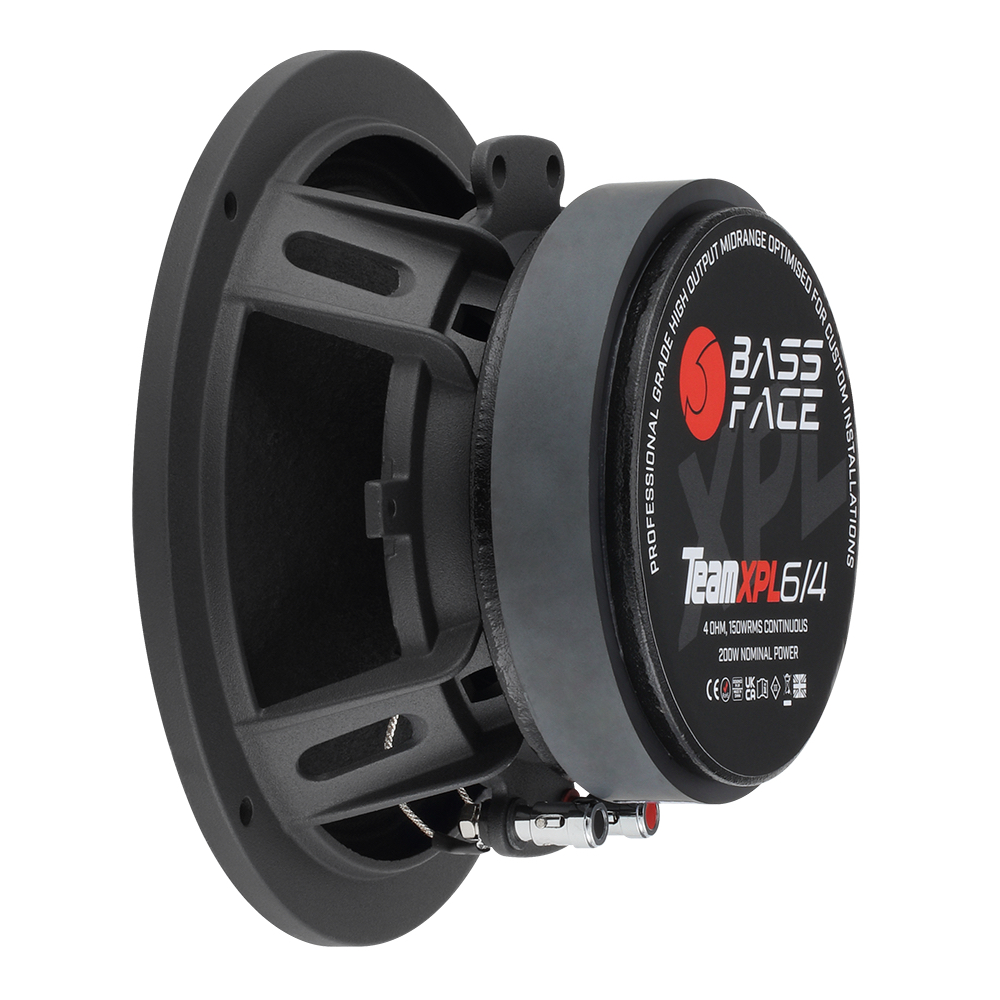

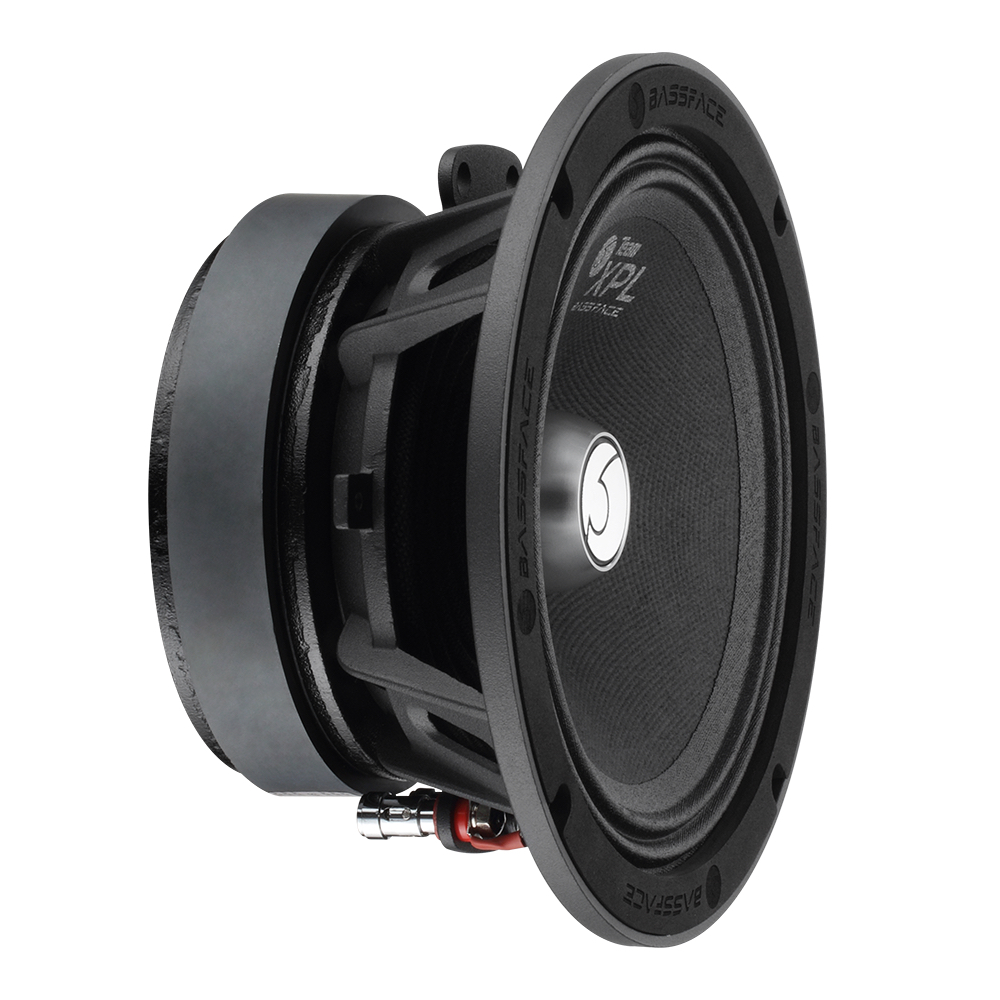

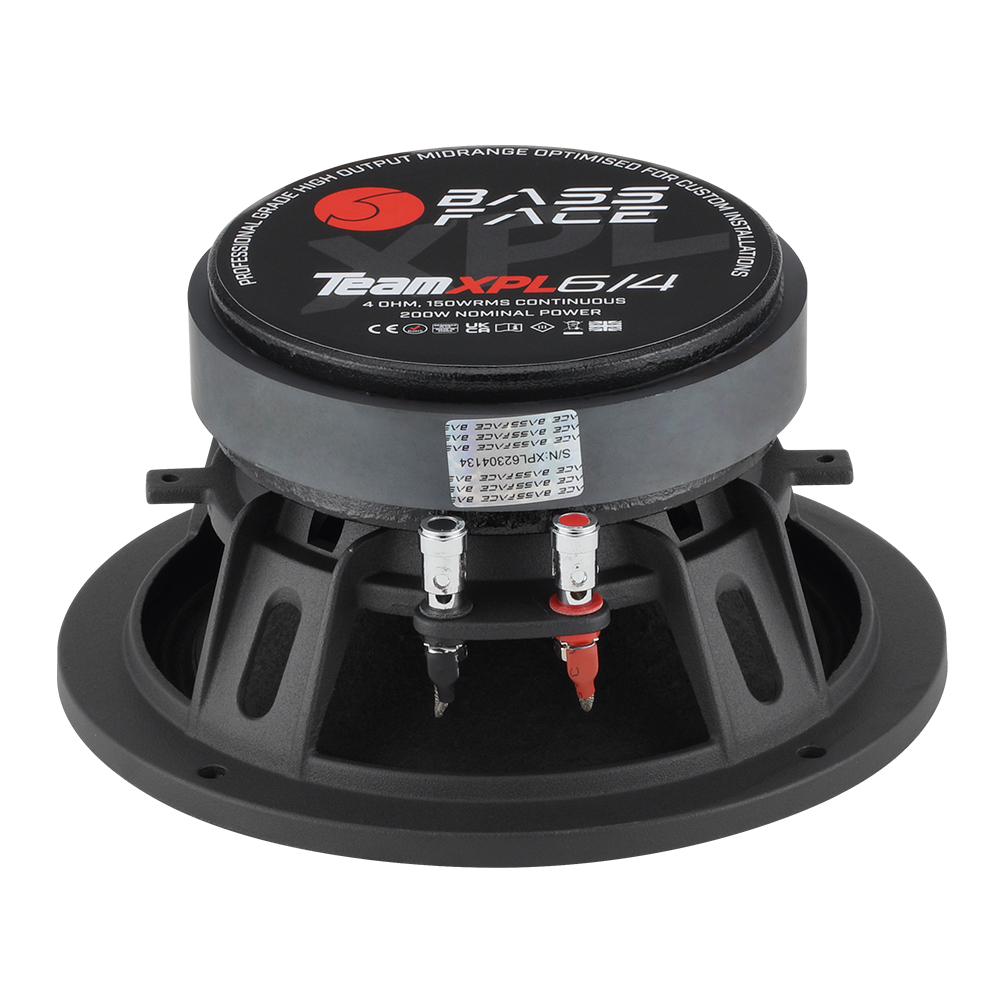

Team XPL6/4 6.5" 16.5cm 4Ohm 200w RMS Professional Grade High Output Midrange Speaker


World RRP: £40.95

Category: Midbass & Midrange Speakers

Product code: TeamXPL6/4

XPL midrange drivers have big power but at the same time a butter smooth and almost perfectly linear response right up to rolloff point. In the region up to around 1Khz they are absolutely unbeatable and offer amazing detail and sonic quality. Power handling is tremendous due to the top of the range Y35 magnet and generously sized motor. VC gap is pinned at a modest setting allowing for big power with a little latitude on coil rub due to abuse but the speaker is not designed for beginners.

Technical Highlights


  • 165mm / 6.5" High Performance 200W RMS Midrange Driver
  • Lightweight Non Pressed Paper Cone & Dual Roll Cloth Surround
  • 1.5" Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider
  • High Strength Y35 Motor With 34 Oz Magnet
  • Copper Shorting Ring For Smoother Load Response
  • Carefully Selected Super Rigid Cast Basket
  • Recommended Frequency Range: 120>3500 Hz
  • CNC Machined Phase Plug Optimises Response Curve
  • Full Documentation To Assist With Projects
Technical Highlights

Series


Team

What's In The Box?


What's In The Box?
  • 1 x Midrange Speaker
  • 1 x Data Sheet
  • 1 x Series Window Sticker
  • 1 x Sealing Ring

Version History


Designed by our Far East engineering team and QC checked in Italy. Launched Q2 2023 to immediate sell out situation.

Key Facts


Product Category Midbass & Midrange Speakers
Version 1
Series Team
First Added 24/03/2023
Last Modified 25/01/2024
Barcode 5060905111312
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 2400
Product Height (mm) 90
Product Length (mm) 174
Product Width (mm) 174
Complete Product Pack Weight (g) 2450
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Speaker Data


Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) 200
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 150
Overall Diameter (mm) 174
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-Out Diameter (mm) 148
Overall Depth (mm) 90
Mounting Depth (mm) 81
Front Protrusion From Mounting Plane (mm) 9
System Frequency Response (Hz) 120>3500
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 93.5
Total Magnet Weight (Oz) 34
Magnet Size (mm) 120x20
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate Thickness (mm) 8
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 40
Voice Coil Internal Diameter (mm) 38.5
Voice Coil Winding Height (mm) 12
Voice Coil Winding (Layers) 2
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 108
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

Technical Parameters


Xmax Single Way Total (mm) 2
