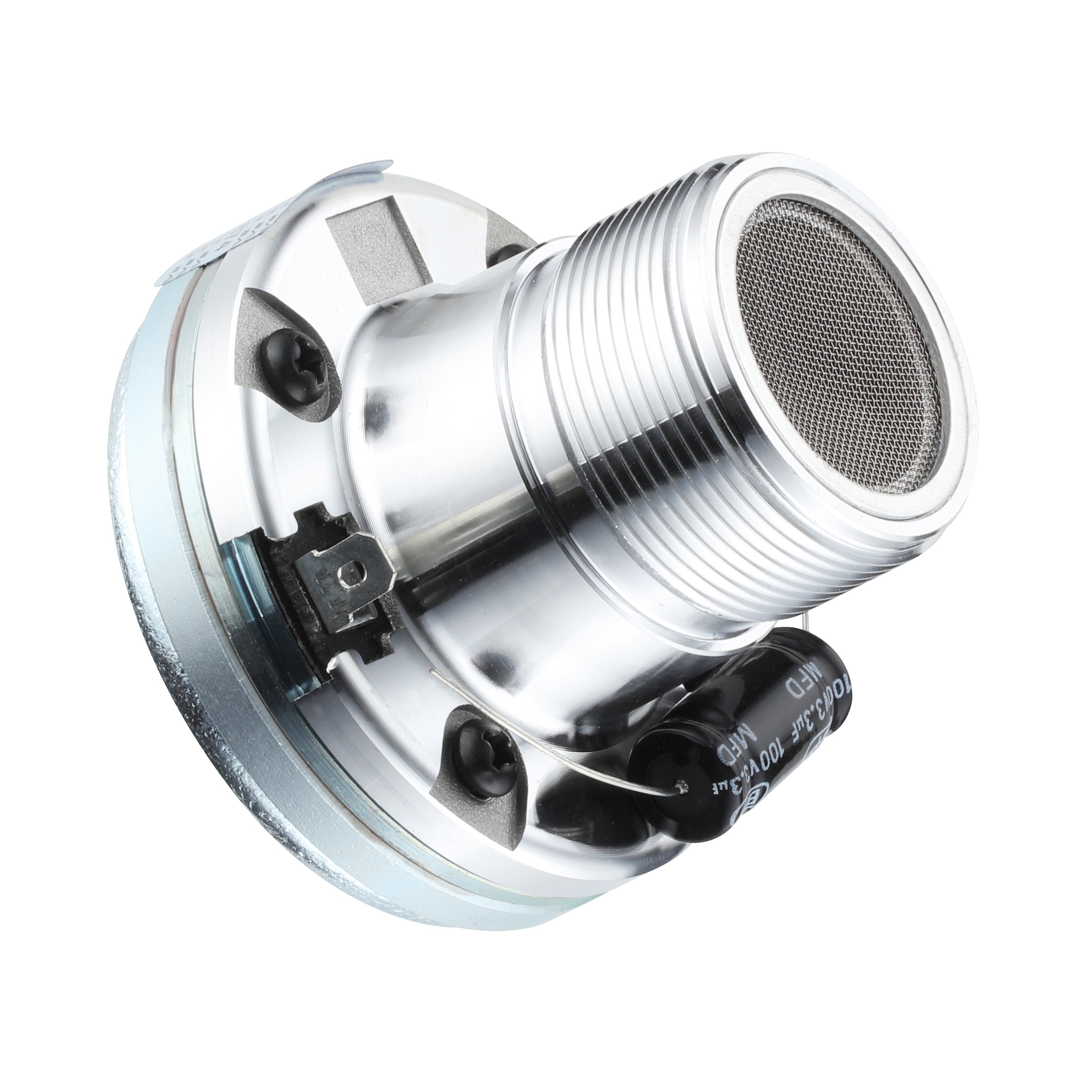

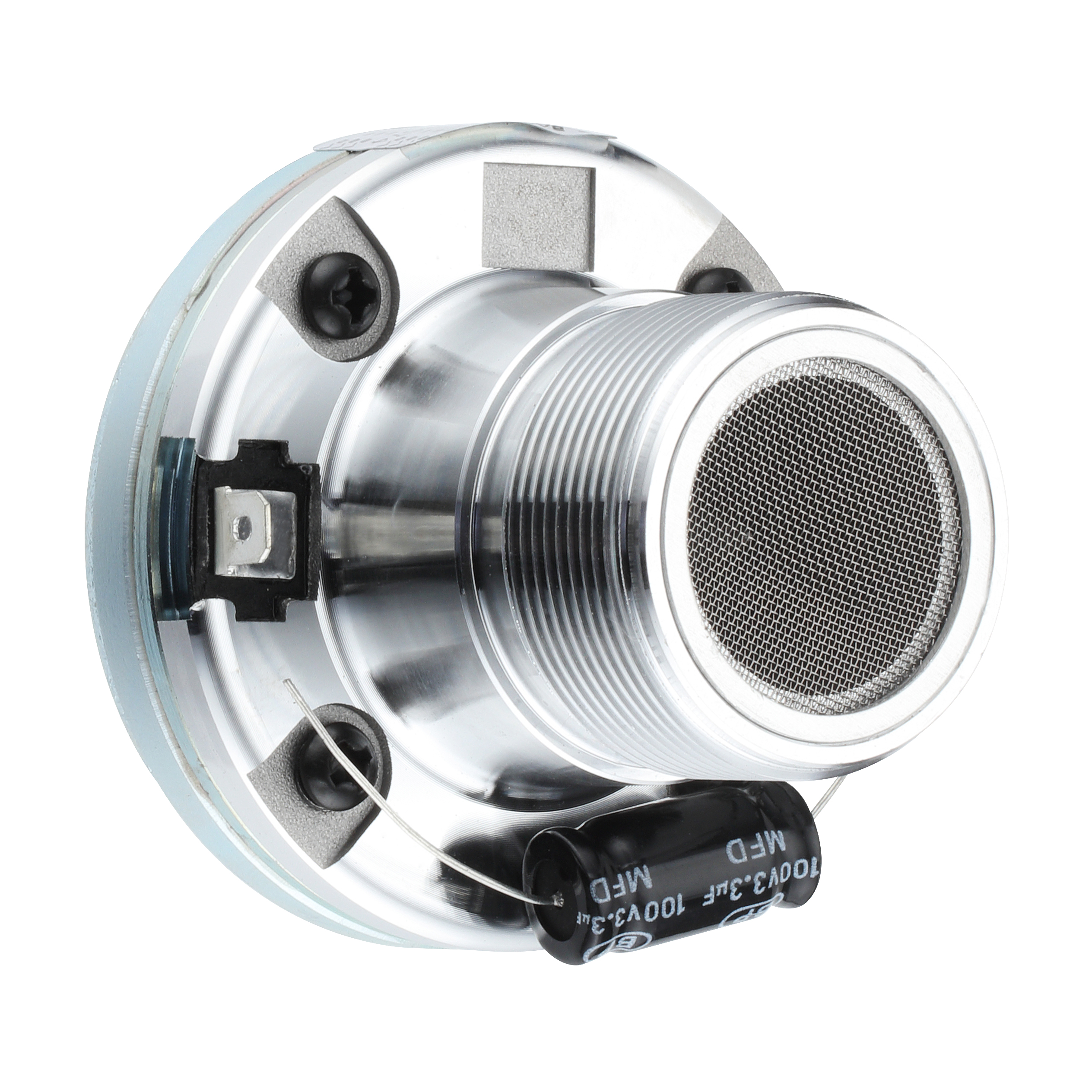

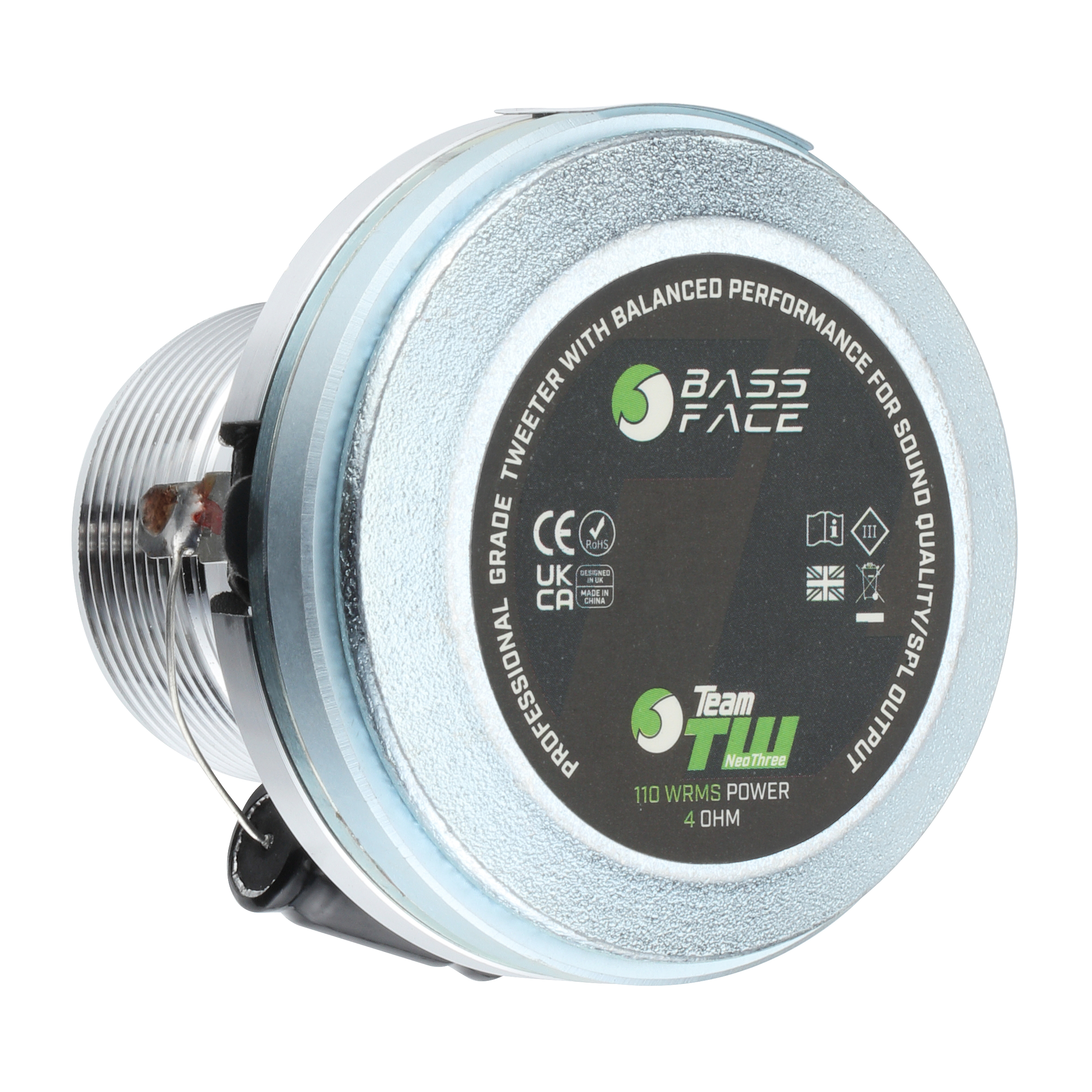

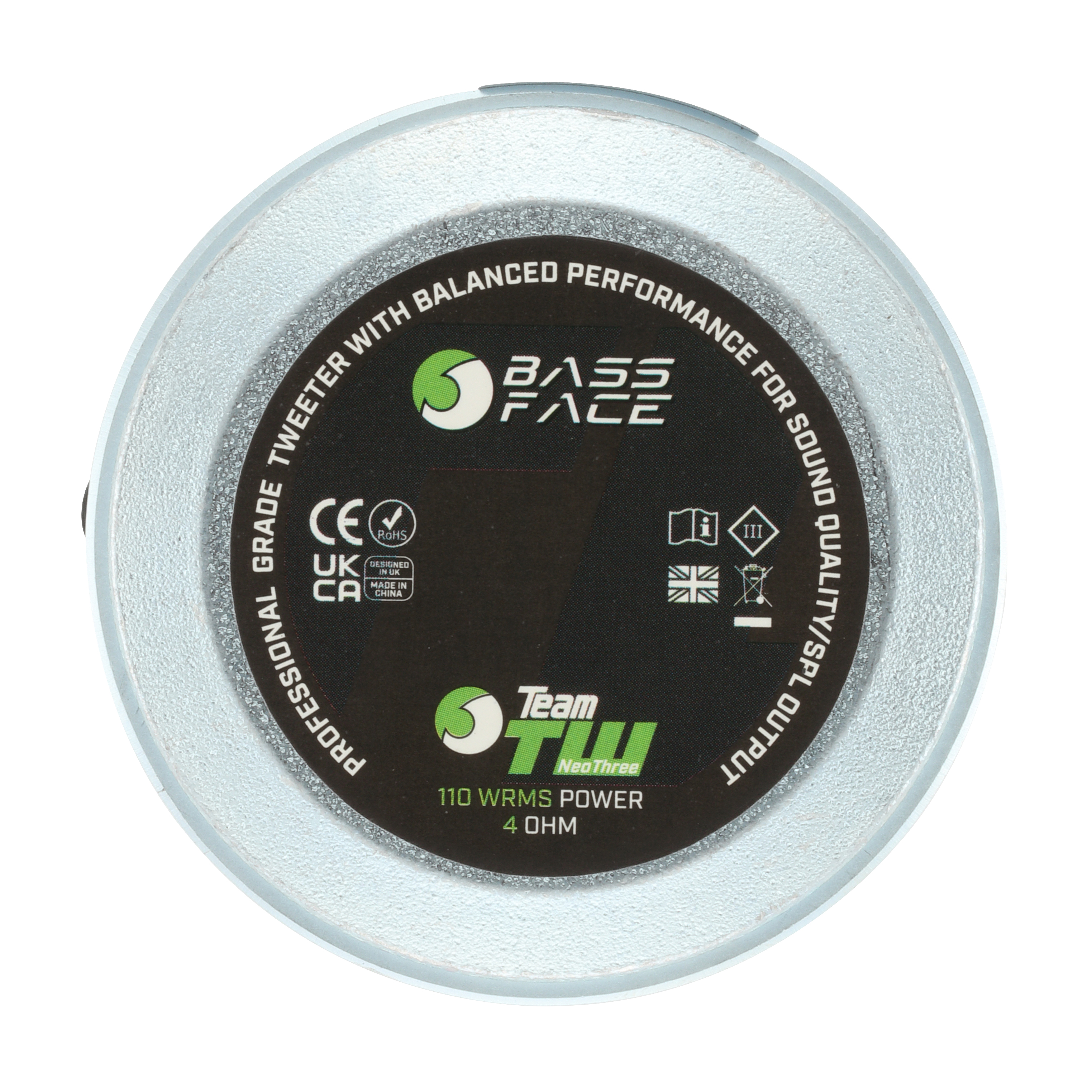

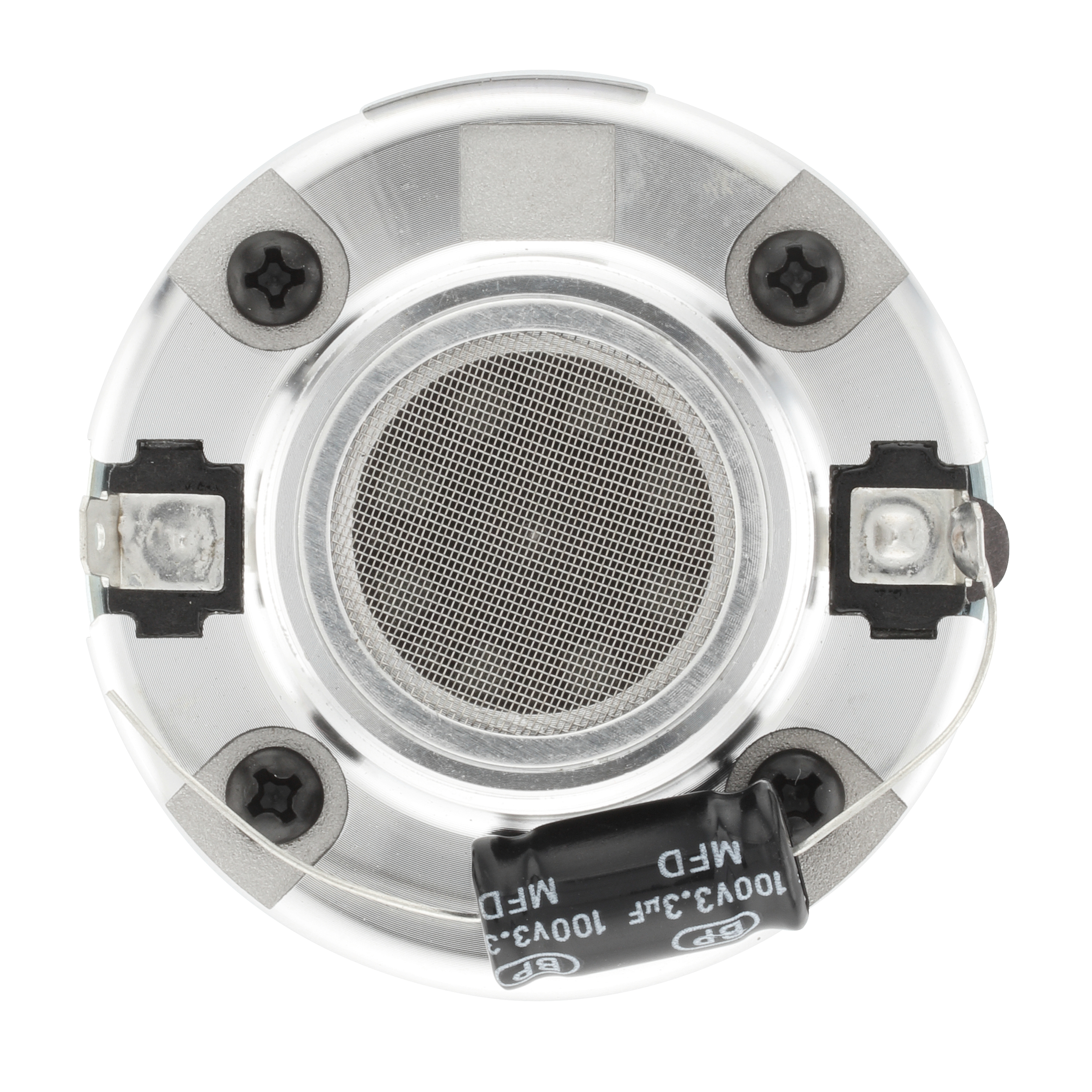

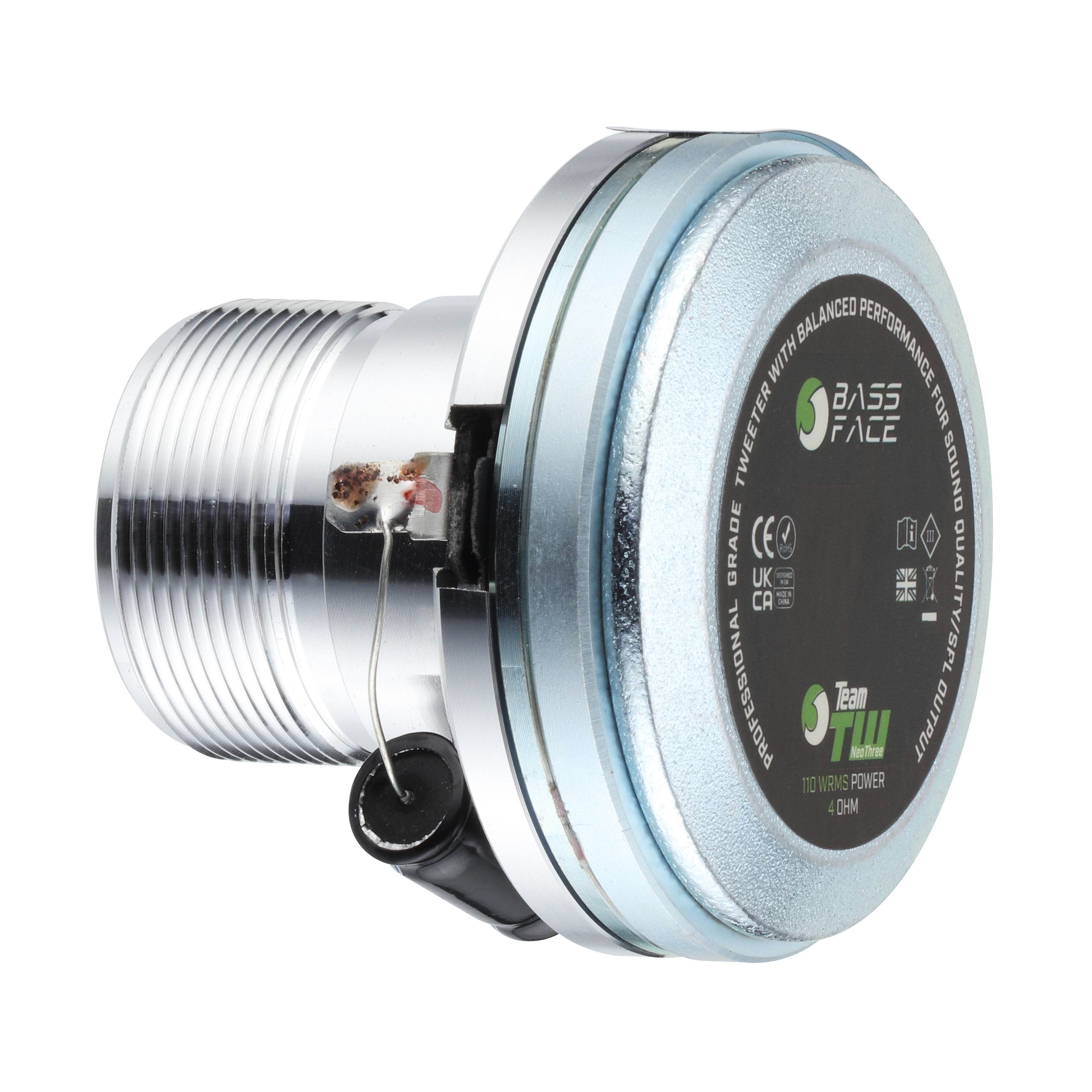

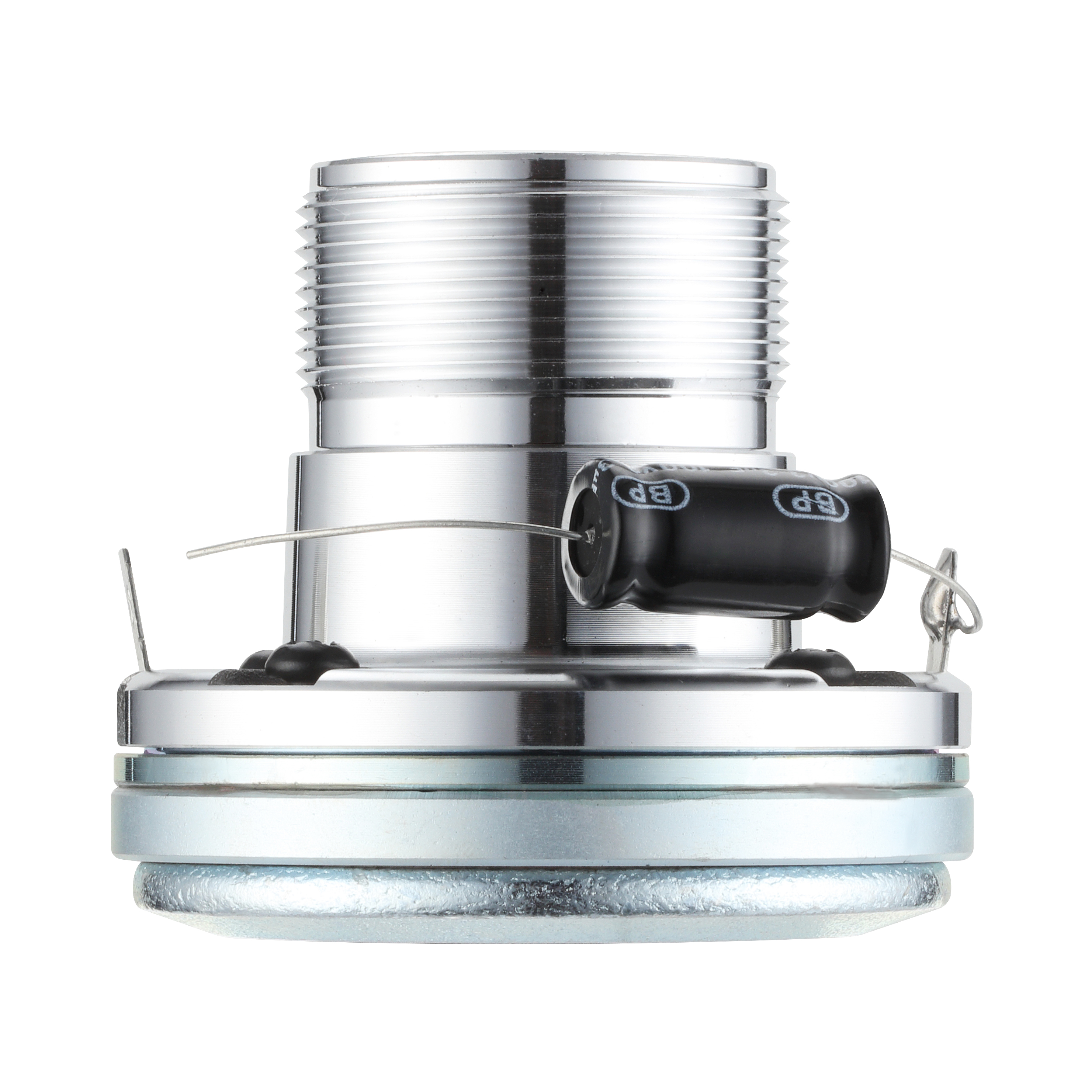

Team TW/NeoThree 4Ohm 110w RMS Small Format Neodymium Compression Type Tweeter (Single)


World RRP: £38.95

Category: Tweeters & Horns

Product code: TEAMTW/NEOTHREE4

With the polyethylene naphthalate (PEN) diaphragm and Neodymium N42 magnet this small form factor professional tweeter offers excellent , highly realistic sound quality when played through a range of horns. Care must be taken when viewing the raw frequency graph because obviously that changes dramatically when played as a system, and we have been careful to engineer in response peaks where generally needed to combat the horn losses experienced, leading to a broadly flat response as a system. Available as both a 4 and 8 ohm version. This is the 4 ohm variant.

Technical Highlights


  • High-sensitivity tweeter design (103 dB/1W) delivers strong output while retaining good control for sound-quality-focused systems
  • N42 neodymium motor (2.7 oz) offers high efficiency and fast response in a compact, lightweight format
  • 24.8 mm voice coil and rigid diaphragm construction support clean, accurate high-frequency reproduction
  • Usable frequency range from 2 kHz to 20 kHz allows flexible crossover points and precise system tuning
  • Team SQ tweeter designed for show and demo systems that prioritise clarity, detail, and controlled output over sheer loudness

Series


Team

What's In The Box?


  • 1 x Tweeter
  • 1 x Data Sheet
  • 1 x Bassface Sticker

Key Facts


Product Category Tweeters & Horns
Version 1
Series Team
First Added 10/10/2023
Last Modified 08/01/2025
Barcode 5060905111787
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 400
Product Height (mm) 54
Product Length (mm) 60
Product Width (mm) 60
Complete Product Pack Weight (g) 450
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Tweeter Data


Voice Coil Diameter (mm) 24.8
Overall Depth (mm) 54
Overall Diameter (mm) 60
Magnet Diameter (mm) 60
Magnet Weight (Oz) 2.7
Magnet Type N42
System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) 220
System Maximum Power (Watts) (Single Tweeter) 110
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 55
Frequency Response (Hz) 2000>20000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 103
