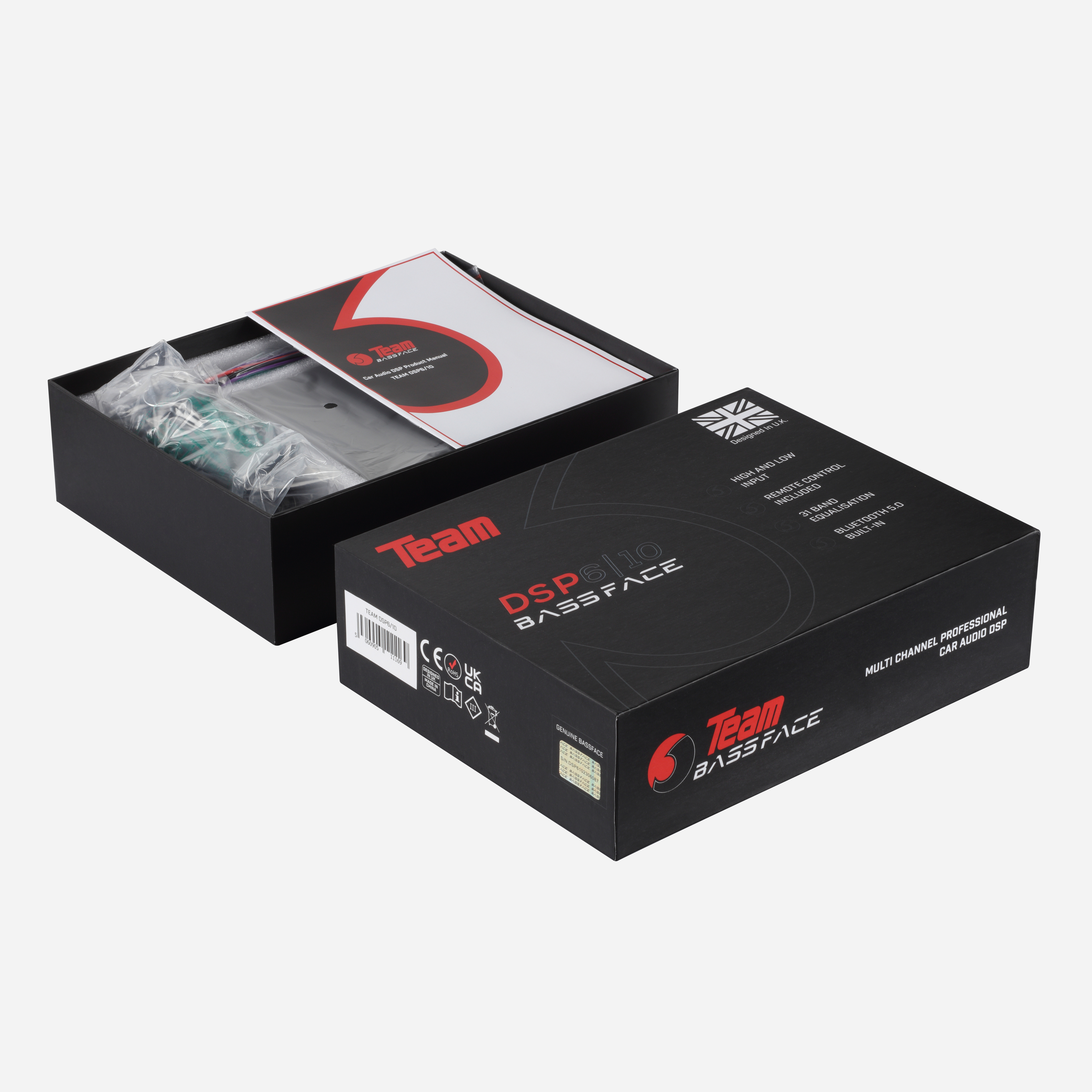

Team DSP6/10 8x25W Integrated Amplifier & Multi Channel Software Control DSP/Crossover/EQ
World RRP: £199.95
Category: Source Units
Product code: TeamDSP6/10

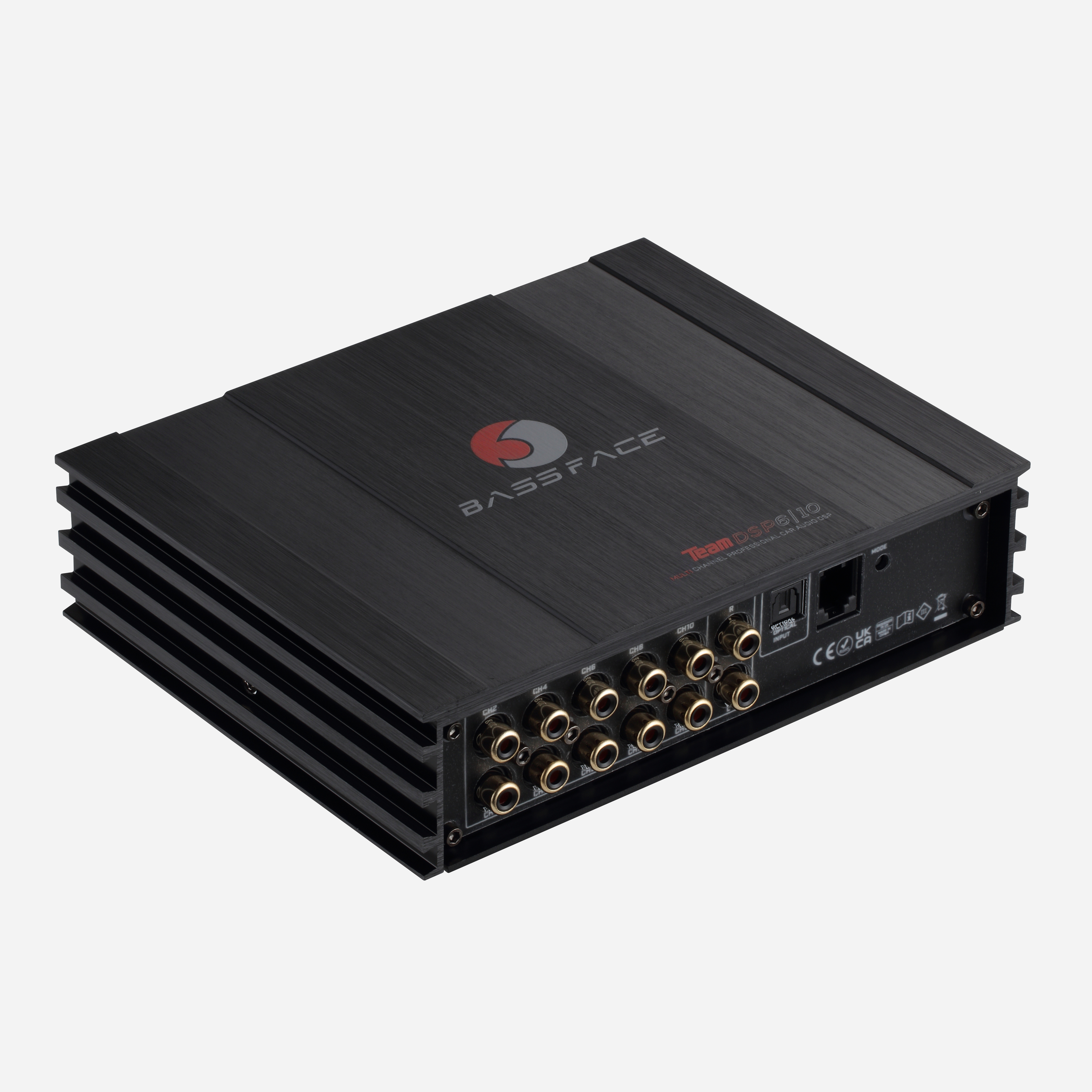

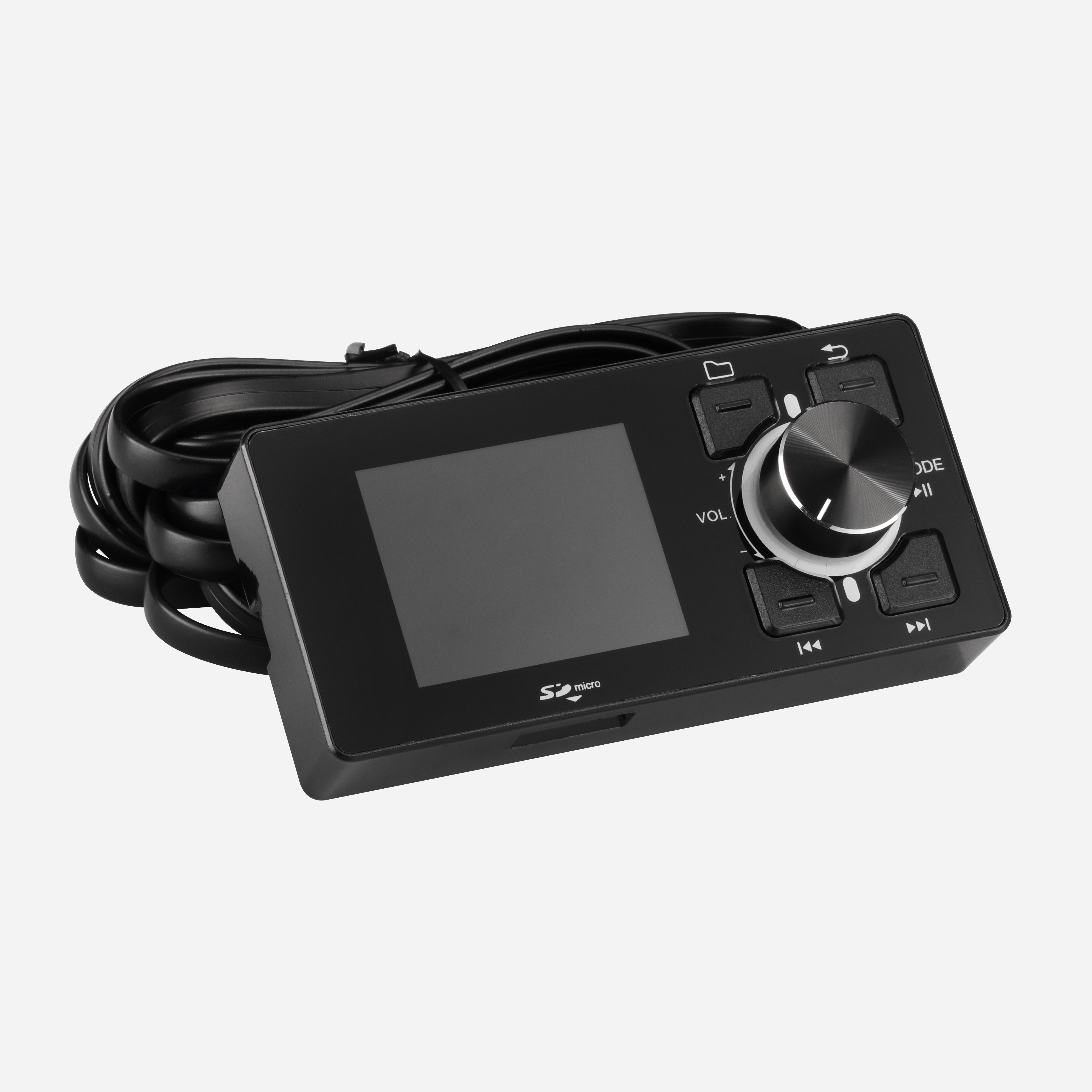

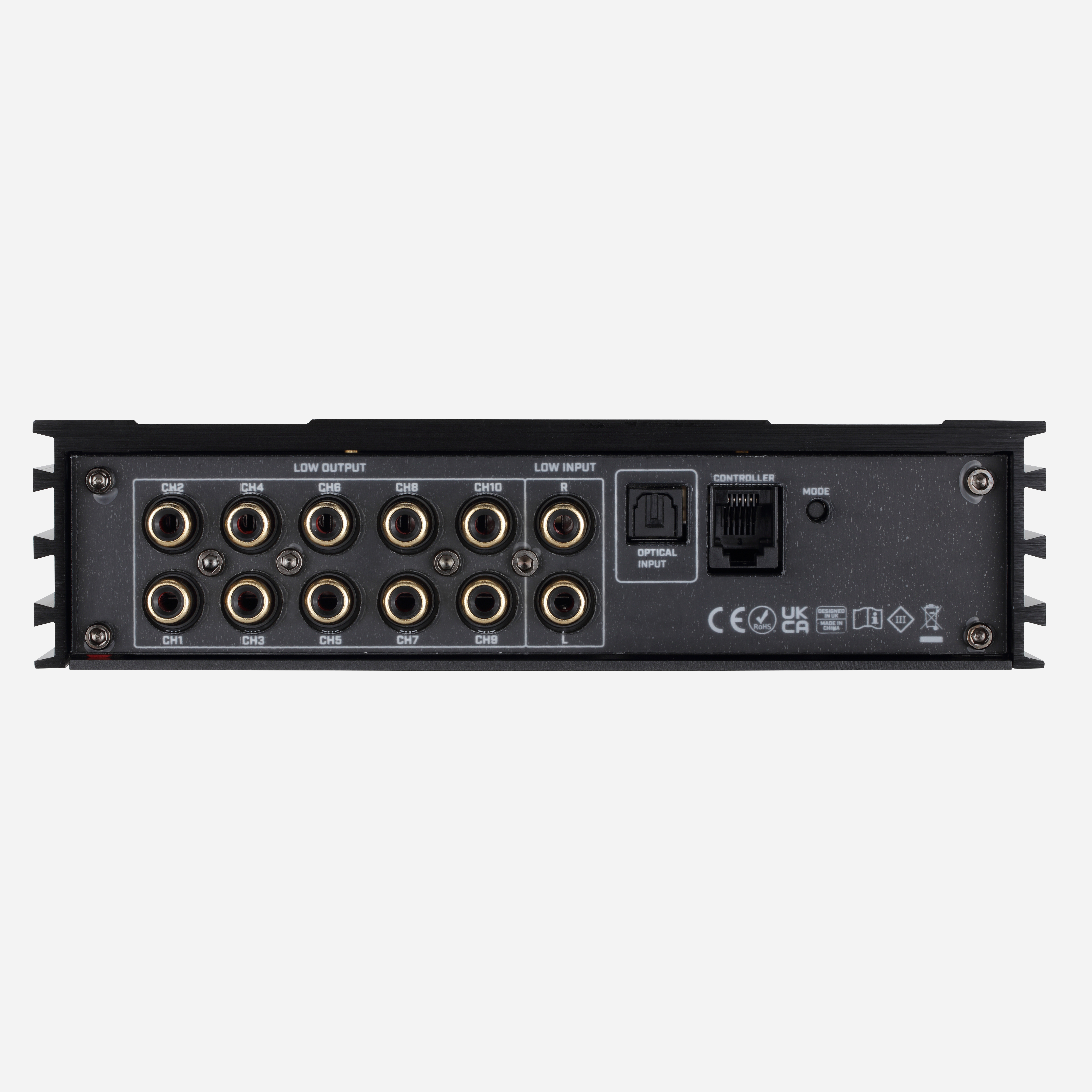

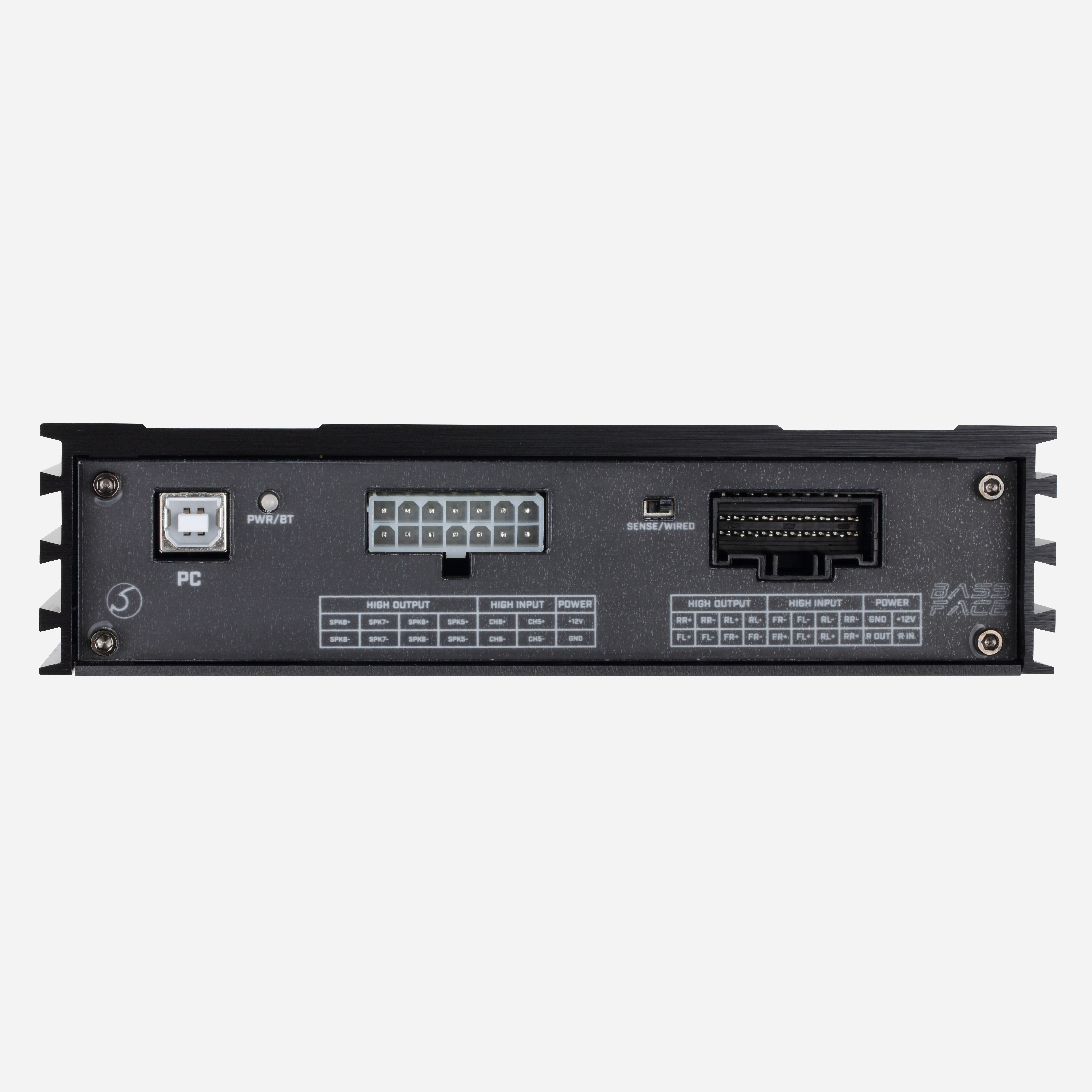

The DSP6/10 is the latest version of our DSP series. Boasting 10 output channels on RCA as well as an integrated amplifier with 8 powered channels this is a Swiss Army Knife of a product. It has 8 input channels via High Level or a stereo RCA input as well as Optical Fibre input to allow almost limitless connection possibilities. As you might expect, the DSP6/10 is an absolute processing genius. Controlled by PC software the unit offers a full 31 band EQ, both graphic and parametric. This features adjustable Q factor and gain of + and - 12db in steps of just 1 Hz! The Crossover module has adjustable elbows - you can select Butterworth, Linkwitz-Riley or Bessel curves along with slopes from 12db to an astonishing 48db "brick wall" style crossover in steps of 6db! Time delay on every channel is adjustable up to 25ms along with phase. There is an output level adjustment for every channel and a separate input level not only for every channel but for every single source input to every single channel along with a fully adjustable noise gate. Quite simply the functions and possibilites are limited only by your imagination. Finally the unit has a wired remote unit to select the audio presets and adjust level. We have been also able this time to incorporate no less than 2 bluetooth connections for music. One has a lower basic input level than the other which can help to optimise devices with different levels. App stores also have compatible software that enable mobile tuning, although we don't support that directly. Please note that the DSP6/10 does not ship with USB-A to USB-B type cable required for PC tuning. Please note - this is an extremely advanced processor. You cannot "plug and play" in any way, shape or form. The unit ships with the V1 software. Please update the software before use as it has important Bluetooth changes.
