World RRP: £56.95
Category: Midbass & Midrange Speakers

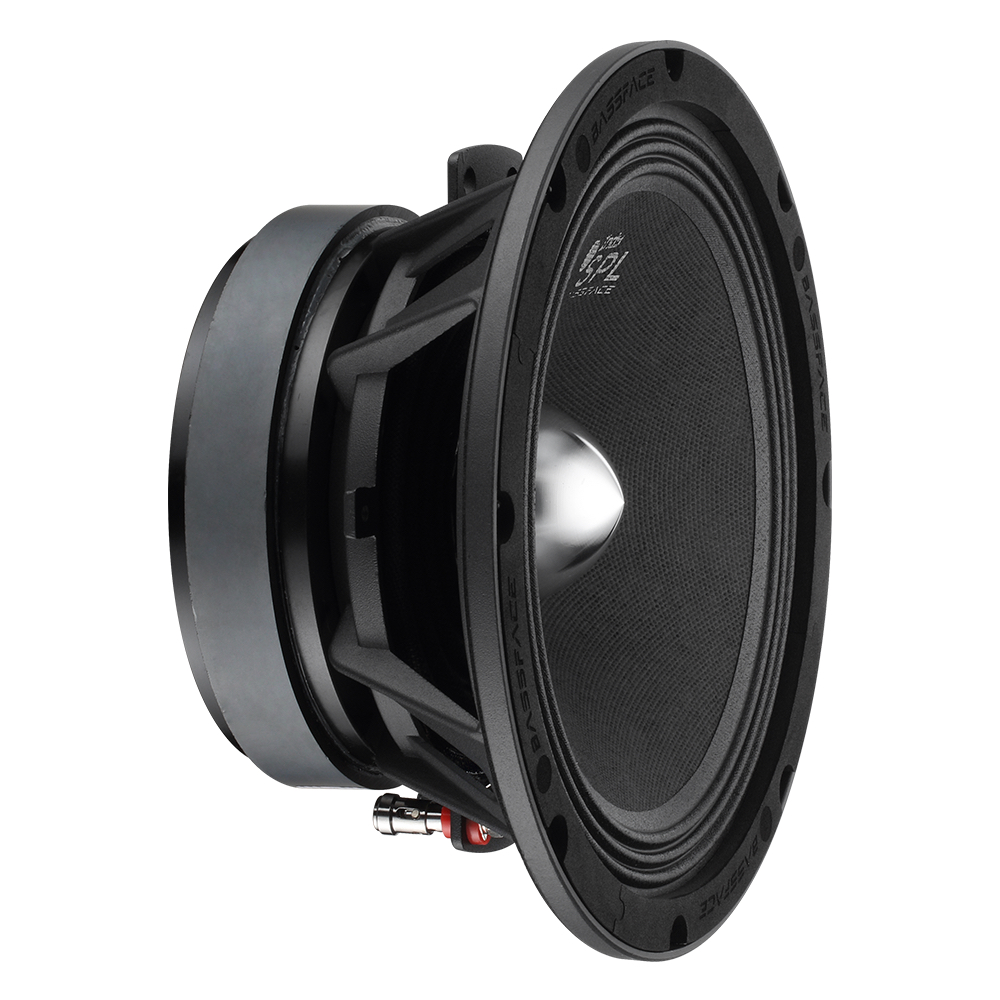

Product code: IndySPL8M/4
Product Category | Midbass & Midrange Speakers |
Version | 1 |
Series | Indy |
First Added | 24/10/2016 |
Last Modified | 25/01/2024 |
Barcode | 5060905111220 |
Production Status | Current |
Product Net Weight (g) (For Pairs/Sets/Major Parts) | 2650 |
Product Height (mm) | 98 |
Product Length (mm) | 210 |
Product Width (mm) | 210 |
Complete Product Pack Weight (g) | 2710 |
Operating Temperature (Degrees Celsius) | 0-50 |
Warranty (Months) - Private Enjoyment Use Only | 12 |
Sold As | Single |
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) | 250 |
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) | 190 |
Overall Diameter (mm) | 210 |
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) | 134 |
Installation Cut-Out Diameter (mm) | 183 |
Overall Depth (mm) | 98.5 |
Mounting Depth (mm) | 91.5 |
Front Protrusion From Mounting Plane (mm) | 7 |
System Frequency Response (Hz) | 120>1800 |
Impedance (Ohm) (Nominal) | 4 |
Sensitivity (db/1Wm) | 96.5 |
Total Magnet Weight (Oz) | 40 |
Magnet Size (mm) | 134x20 |
Magnet Type | Y35 |
Magnet Qty | 1 |
Top Plate thickness (mm) | 8 |
Back Plate Thickness (mm) | 8 |
Voice Coil Former Spec | Kapton |
Voice Coil Type | CCA Round Wire |
Voice Coil External Diameter (mm) | 52.35 |
Voice Coil Internal Diameter (mm) | 50.8 |
Voice Coil Winding Height (mm) | 12 |
Voice Coil Winding (Layers) | 2 |
Cone Type | Non Pressed Paper |
Spider Compliance | Medium |
Spider Type | Linear |
Spider Diameter (mm) | 125 |
Spider Design | Single |
Surround | Triple Roll |
Surround Material | Cloth |
Tinsel Wire | Single |
Terminal | Push |
Xmax Single Way Total (mm) | 2 |
