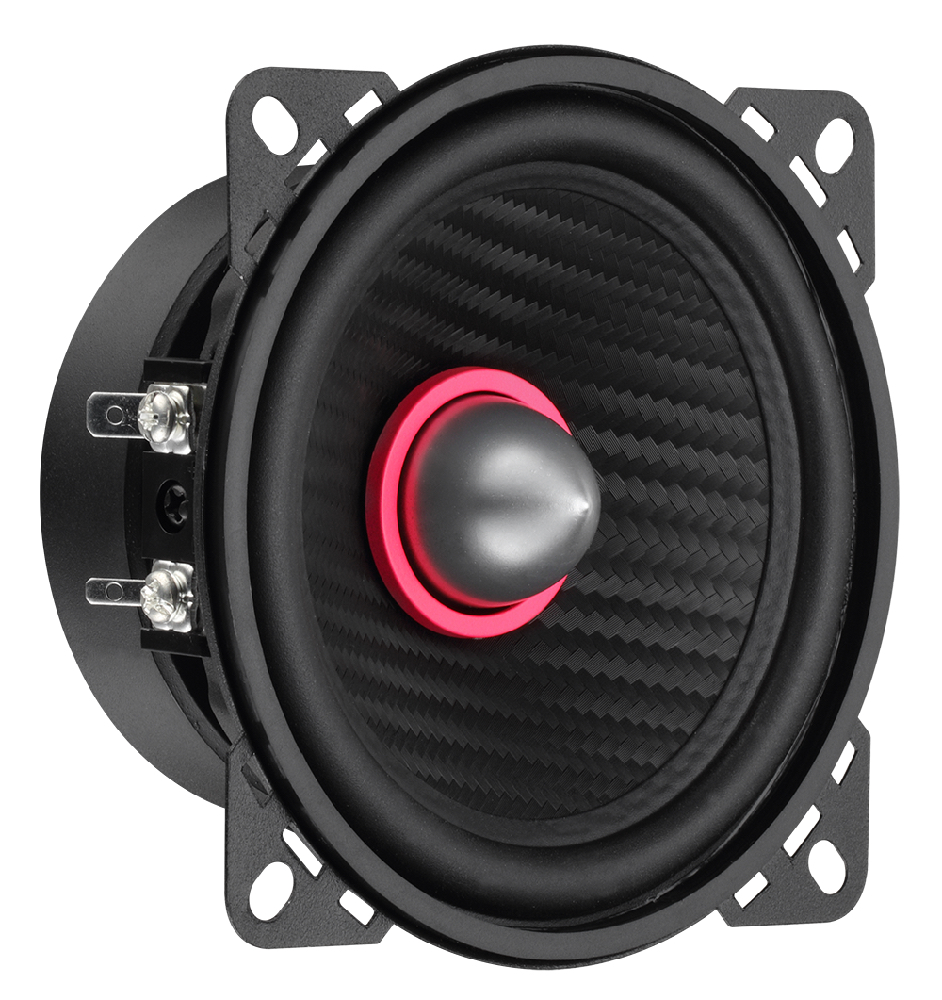

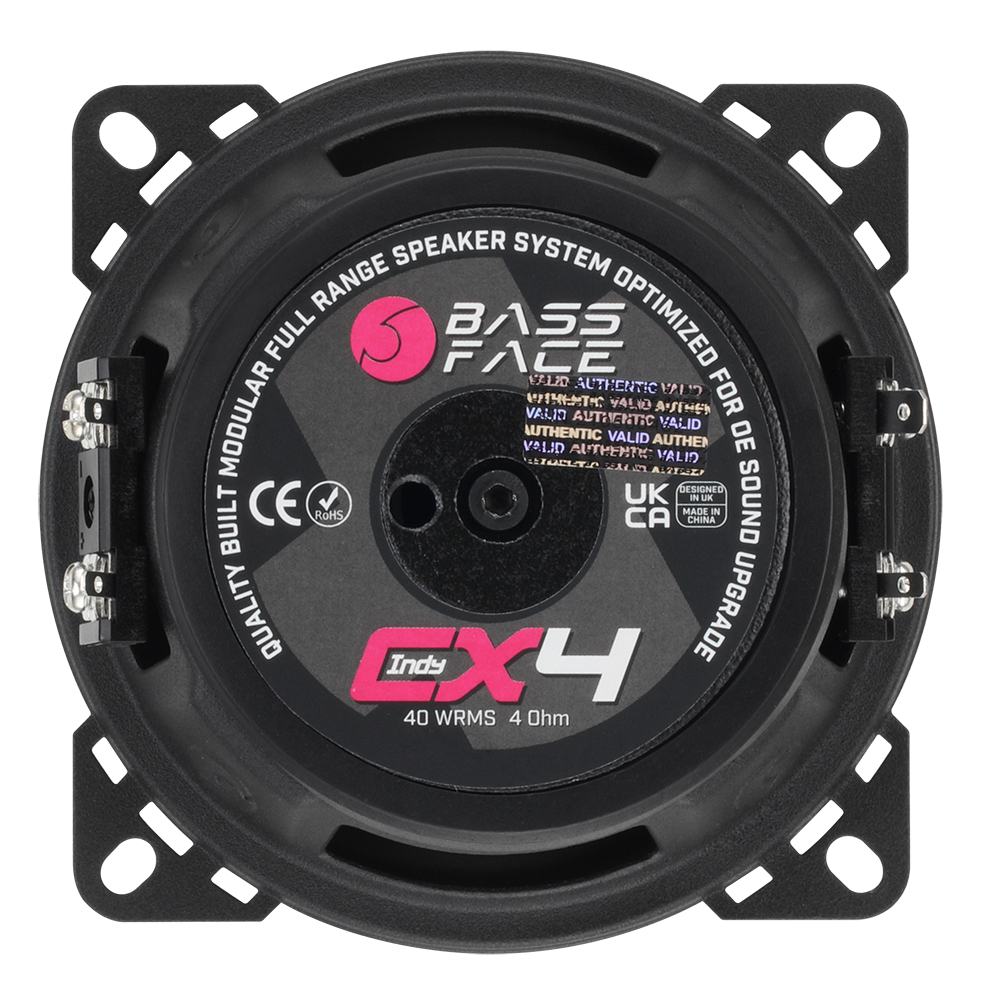

Indy CX4 4'' 10cm 4Ohm Component/Coaxial Midrange & Tweeter System 2x40w RMS Pair


World RRP: £56.95

Category: Coaxial & Component Speakers

Product code: IndyCX4

Indy CX is the answer to a high performance upgrade of full range speakers with a high degree of versatility of installation. This system can be fitted as either a traditional component set or as a coaxial.The package includes all the necessary hardware to do this, along with a simple crossover that is matched to the impedance curve of the speaker to give a smooth and pleasing response. Every aspect of the sonic performance of these speakers was scrutinised to deliver the absolute best balance of sound quality and power handling for the intended purpose.

Technical Highlights


  • 2x40w RMS Continous Power Handling, 4 Ohm System
  • Coaxial Or Component Installation (Crossover Included)
  • 1" Kapton Woofer VC, Progressive Spider Pack
  • Custom Injection PP Woofer Cone, Nitrile Surround
  • Powerful Y30 Woofer & N38 Neodymium Tweeter Magnet
  • Extremely Musical Silk Tweeter, 2 Layer ASV Coil

Series


Indy

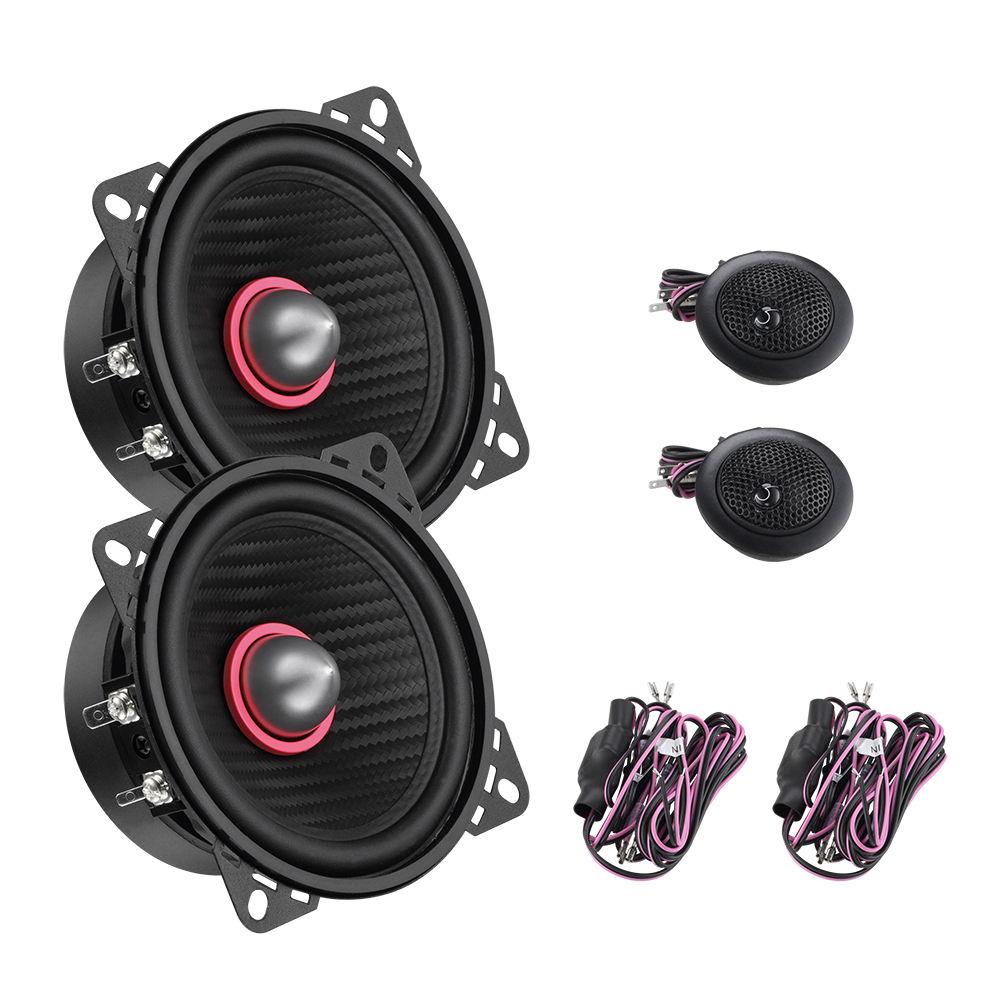

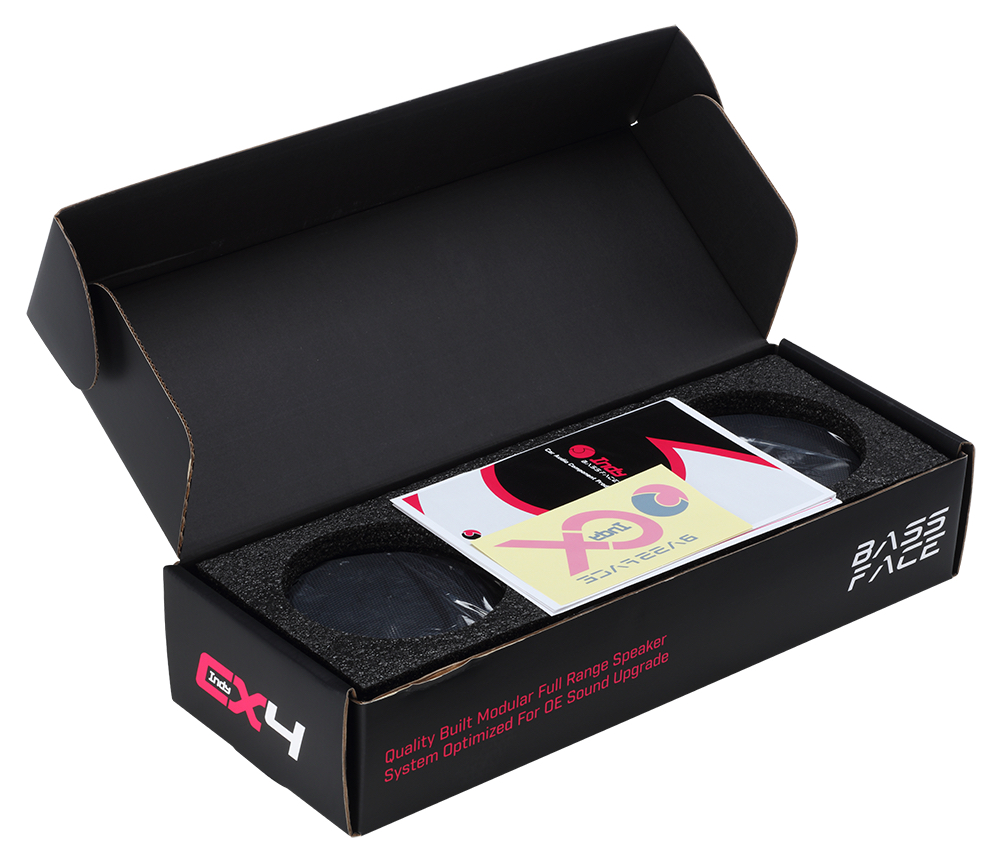

What's In The Box?


  • 2 x Midrange Speakers
  • 2 x Modular Tweeters
  • 2 x Crossovers
  • 1 x Bassface Sticker

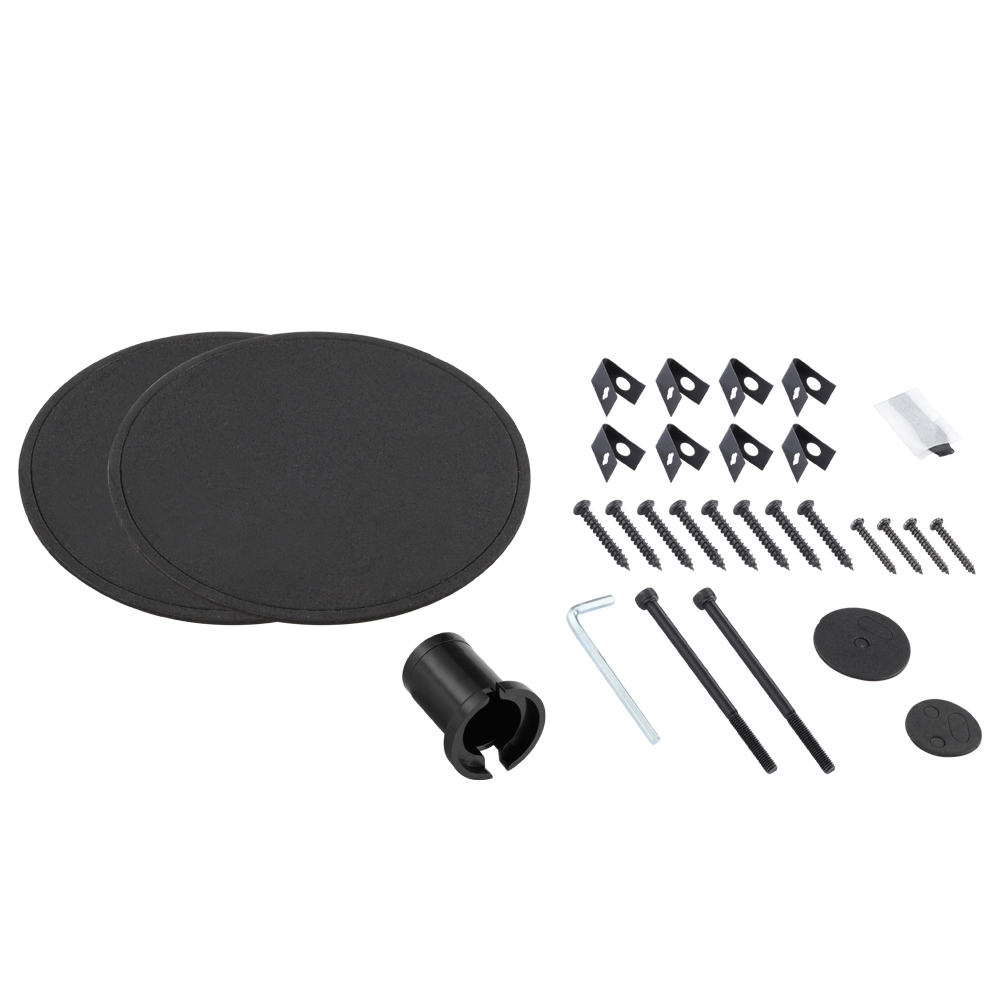

  • 1 x Hardware & Instruction Pack

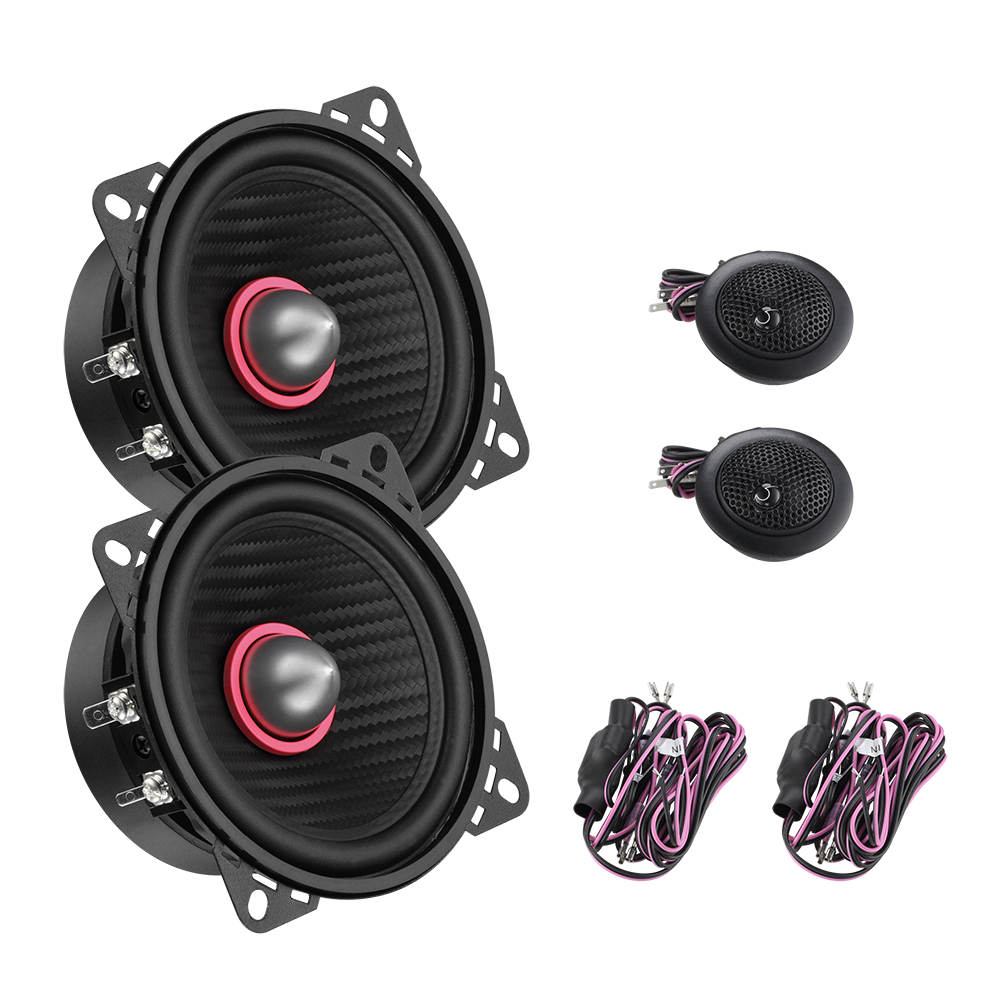

What's In The Box?

Key Facts


Product Category Coaxial & Component Speakers
Version 1
Series Indy
First Added 29/03/2021
Last Modified 14/12/2023
Barcode 5060905110254
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 1280
Product Height (mm) 51
Product Length (mm) 116
Product Width (mm) 116
Complete Product Pack Weight (g) 1350
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Pair

Tweeter Data


Voice Coil Diameter (mm) 20.4
Overall Depth (mm) 25
Mounting Depth (mm) 17
Front Protrusion From Mounting Plane (mm) 8
Overall Diameter (mm) 46
Magnet Diameter (mm) 19.5
Installation Cut-out Diameter (mm) 40
Magnet Weight (Oz) 0.25
Magnet Type NdFeB-N38
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 40
Frequency Response (Hz) 1500>20000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 92

Speaker Data


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 40
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 87
Total Magnet Weight (Oz) 6.5
Optimum Bass Enclosure Type IB
Voice Coil Former Spec Kapton
Voice Coil Type SV Type (200 Degree C)
Voice Coil External Diameter (mm) 25.7
Voice Coil Internal Diameter (mm) 25.5
Voice Coil Winding Height (mm) 9
Voice Coil Winding (Layers) 2
Cone Type Injection PP
Spider Compliance 0.5
Spider Type Progressive
Spider Diameter (mm) 115
Spider Design Single
Surround Rubber
Surround Material Rubber
Tinsel Wire High Temperature
Terminal Screw type

System Power


Full System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) 160

Technical Parameters


SPL (db/1Wm) 87
