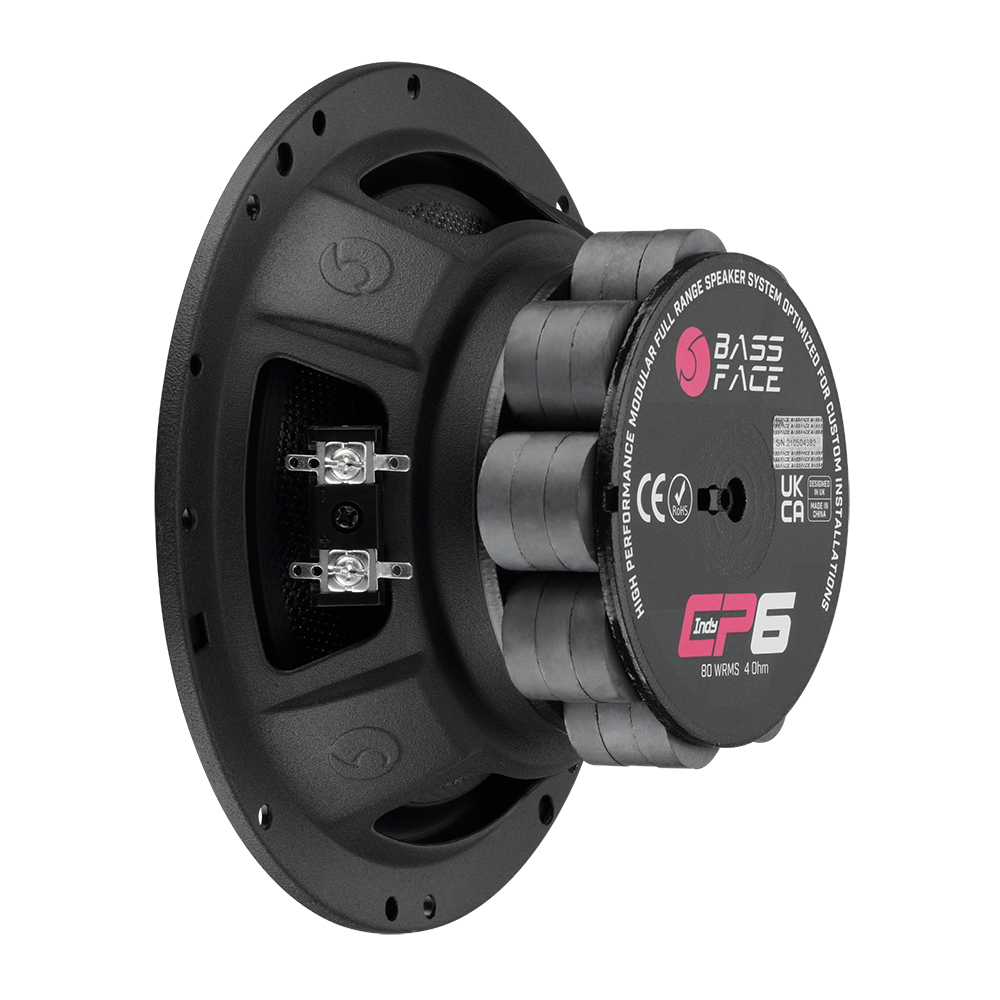

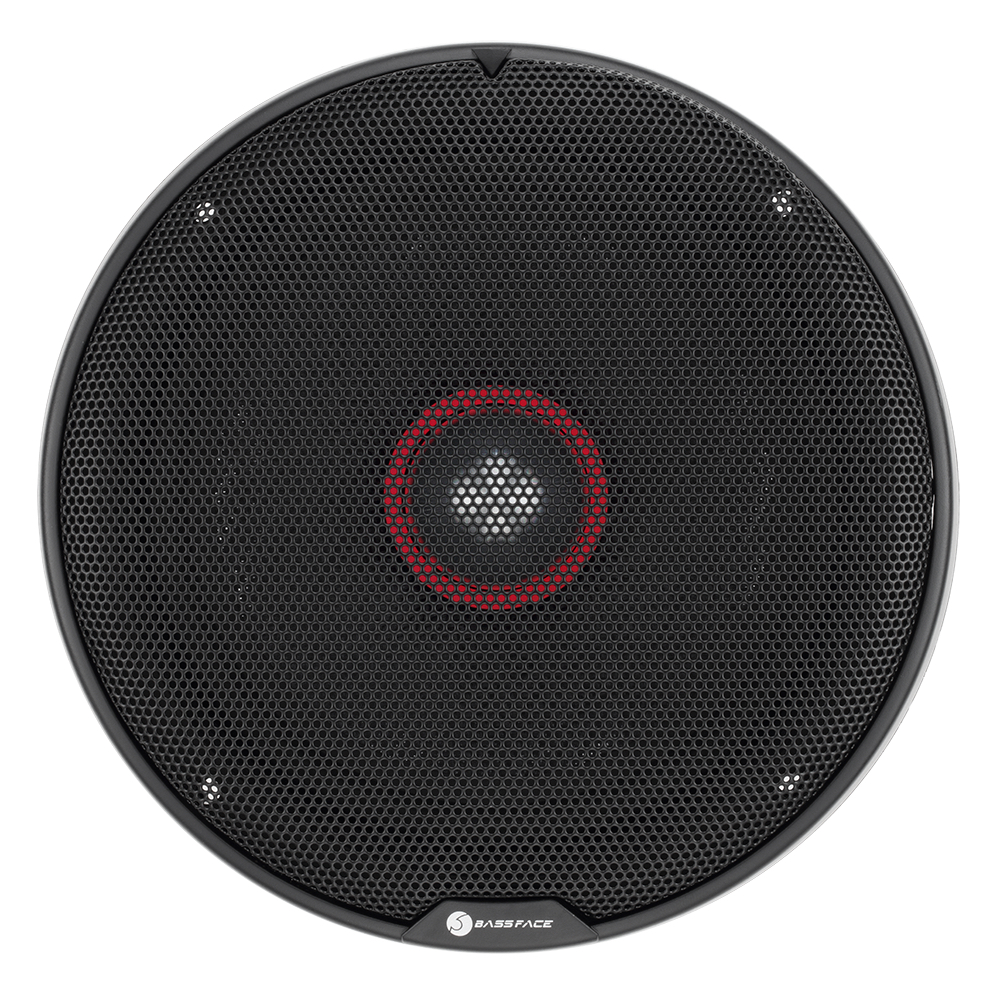

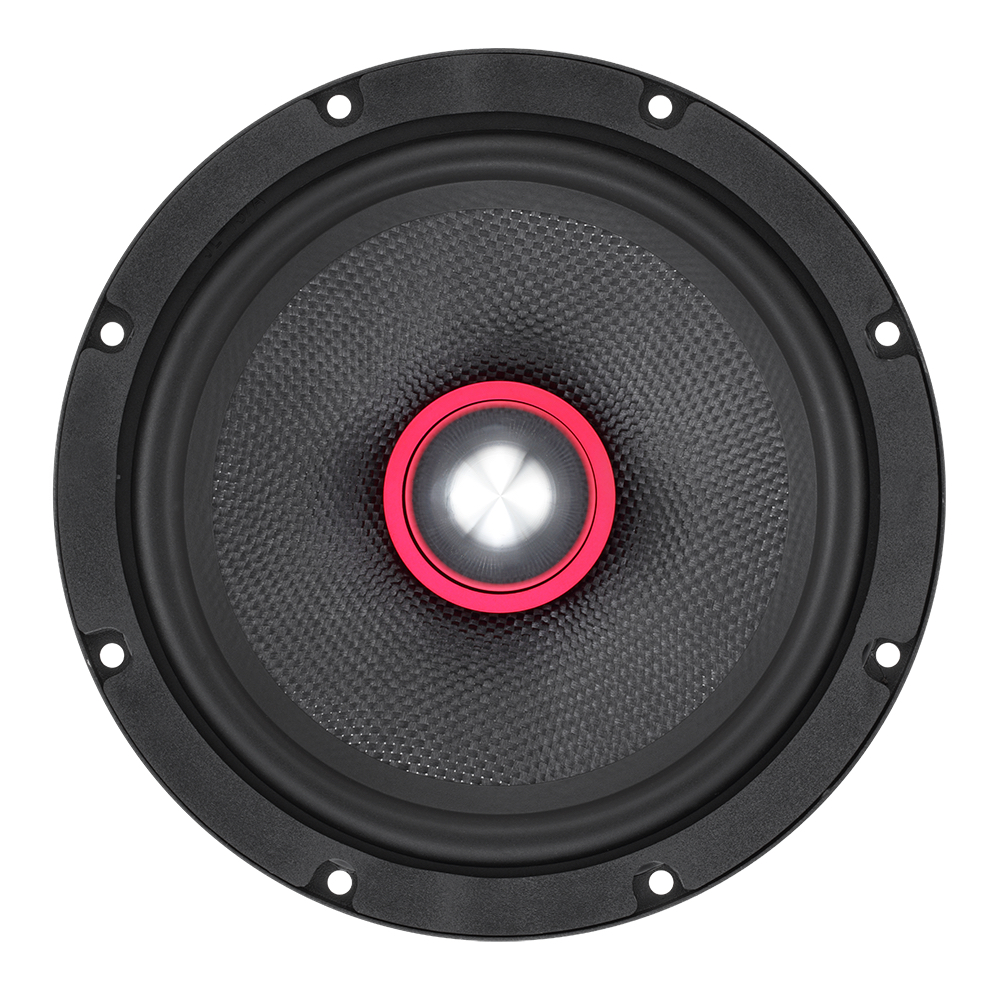

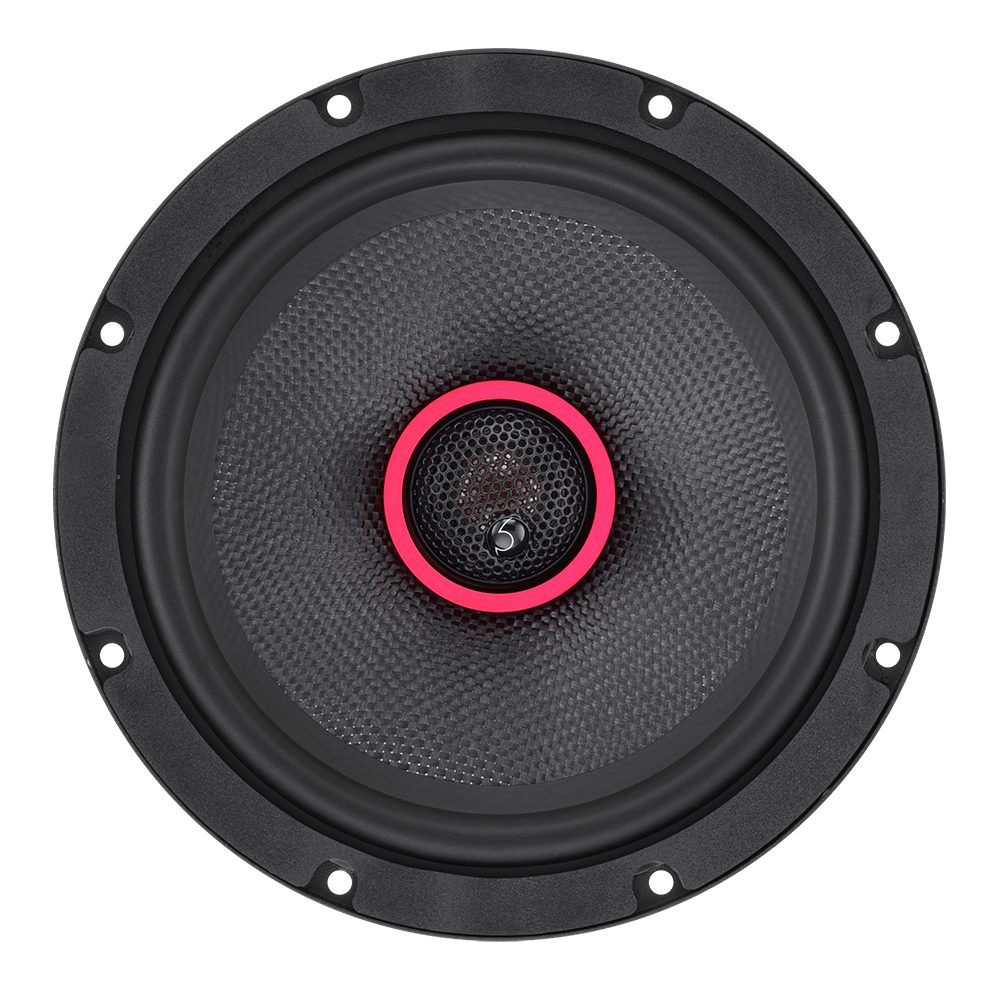

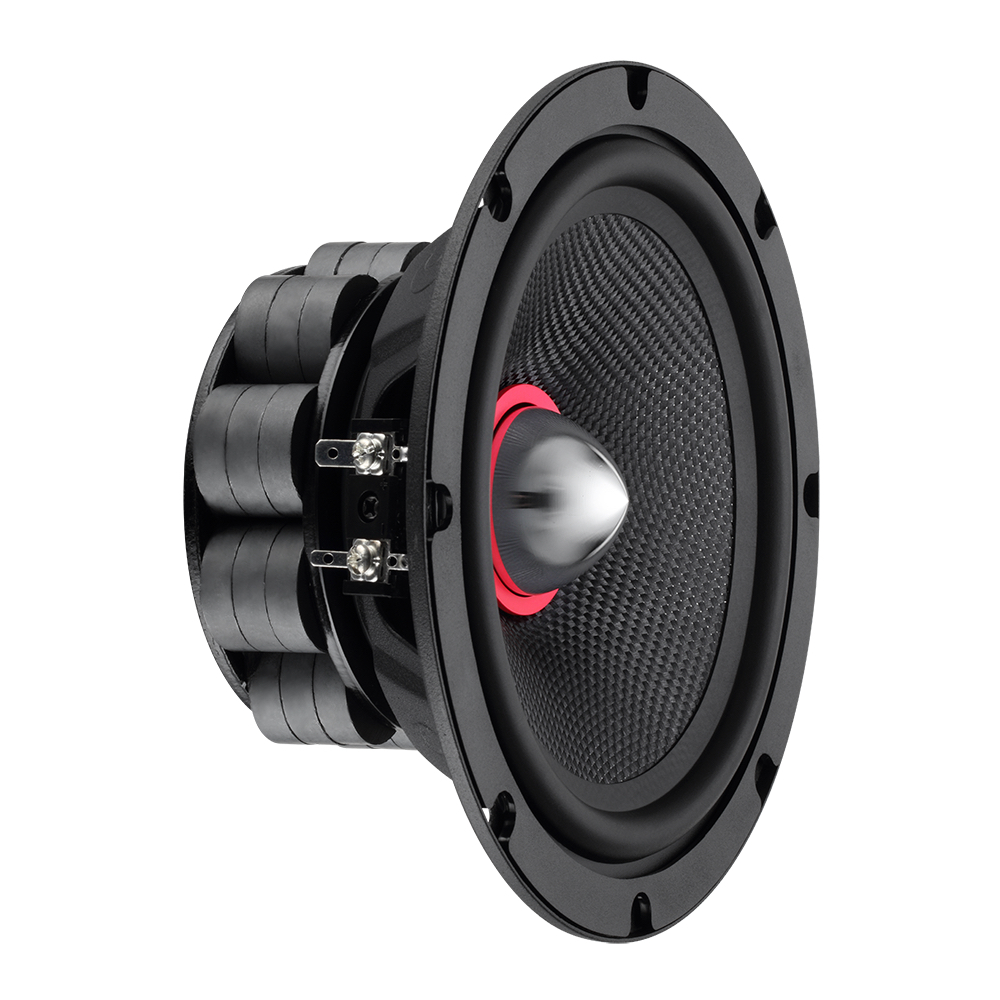

Indy CP6 6.5" 16.5cm 4Ohm Component/Coaxial Midrange & Tweeter System 2x80w RMS Pair


World RRP: £127.95

Category: Coaxial & Component Speakers

Product code: IndyCP6

Indy CP is our top of the range modular all purpose full range speaker system. The multi-piece magnet delivers punchy midbass and the beautifully integrated tweeter offers smooth vocal performance right to the edge of the frequency range, through the carefully matched crossover network. The speakers can be used from a head unit if a relaxed and mellow sound is the goal and a modest sound level is acceptable, but the real excitement happens when a powerful external amplifier is used, when the speakers take on a different character and offer a punchy, powerful, much more exciting sound. Installation can be completed using the system as either as a component or a coaxial installation using the supplied hardware kit.

Technical Highlights


  • 2x80w RMS Continous Power Handling, 4 Ohm System
  • Coaxial Or Component Installation (Crossover Included)
  • 1.5" Kapton Woofer VC, Progressive Spider Pack
  • Custom Fibreglass Woofer Cone, Nitrile Surround
  • High End Y35 Multi-Piece Woofer & N38 Neodymium Tweeter Magnet
  • Extremely Musical Silk Tweeter, 2 Layer ASV Coil
  • Copper Shorting Ring For Smoother Load Response

Series


Indy

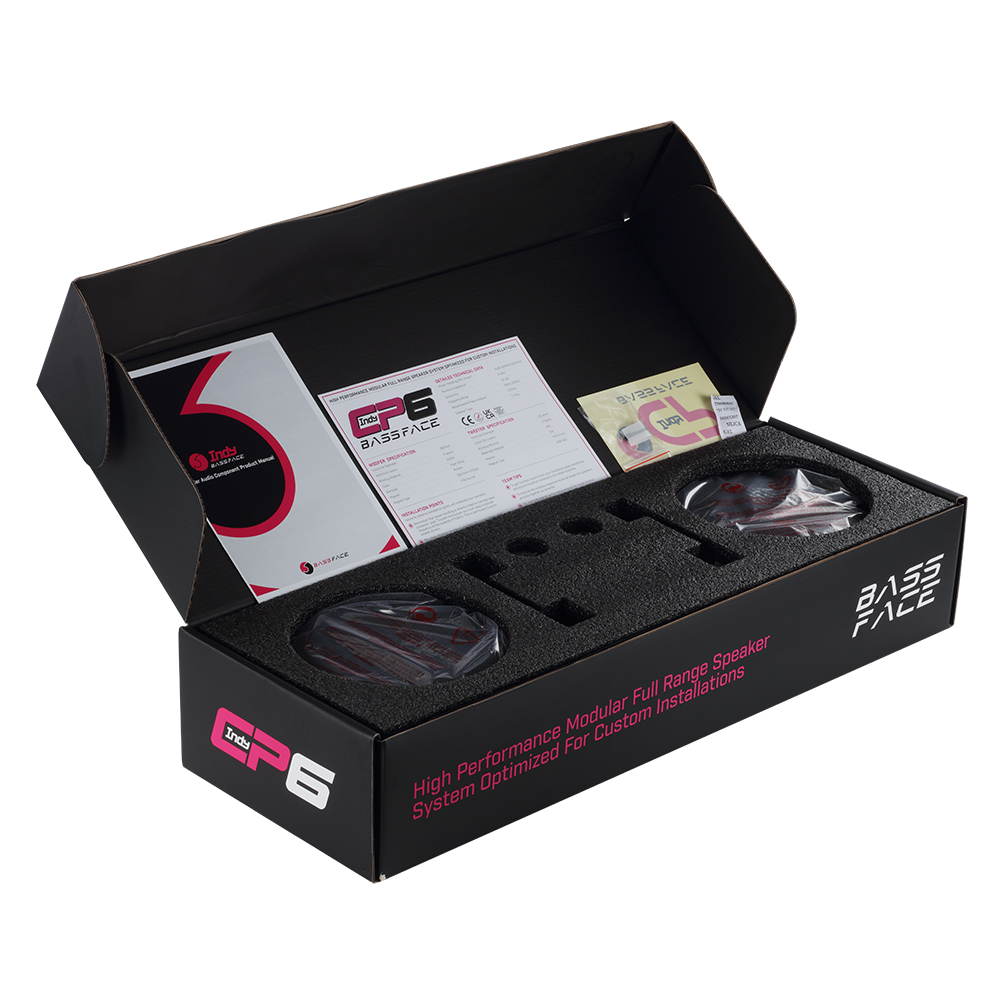

What's In The Box?


  • 2 x Midrange Speakers
  • 2 x Modular Tweeters

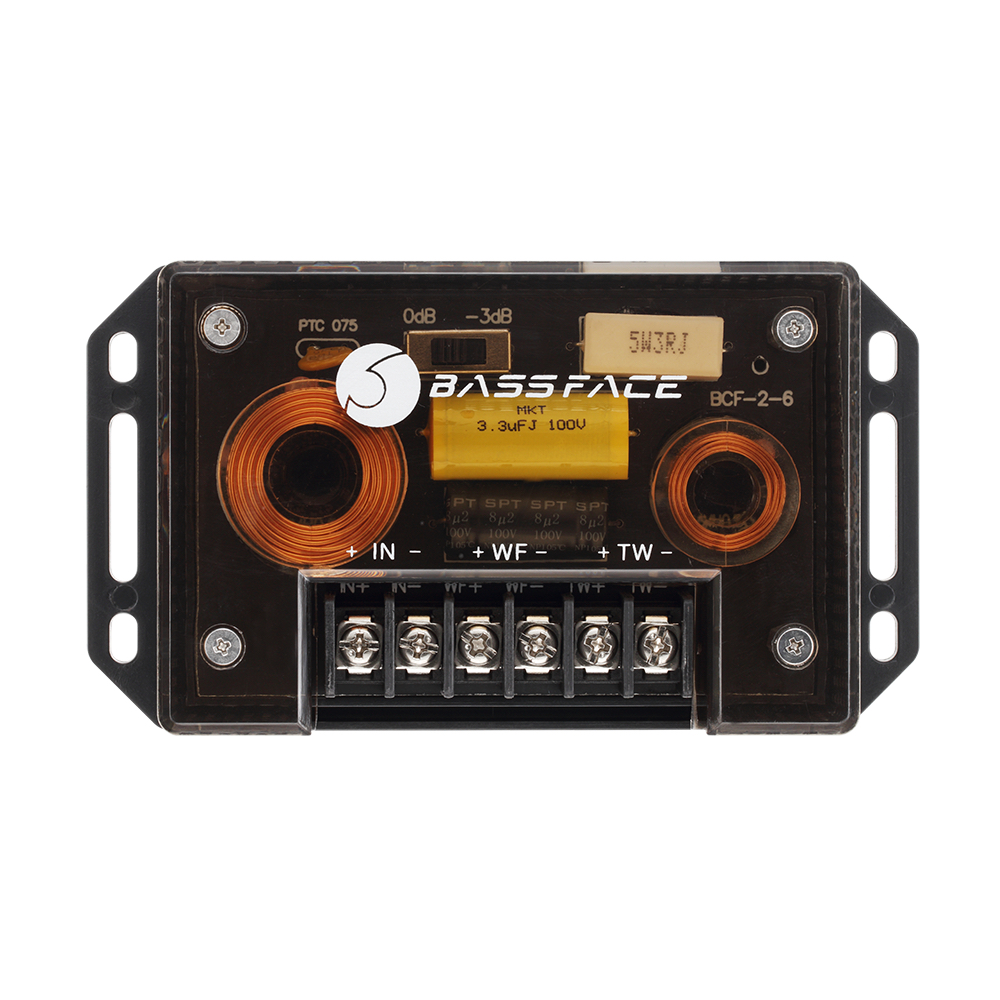

  • 2 x Crossovers
  • 1 x Bassface Sticker
  • 1 x Hardware & Instruction Pack
What's In The Box?

Key Facts


Product Category Coaxial & Component Speakers
Version 1
Series Indy
First Added 29/03/2021
Last Modified 14/12/2023
Barcode 5060905110247
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 3200
Product Height (mm) 73
Product Length (mm) 156
Product Width (mm) 156
Complete Product Pack Weight (g) 4700
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Pair

Tweeter Data


Voice Coil Diameter (mm) 20.4
Overall Depth (mm) 25
Mounting Depth (mm) 17
Front Protrusion From Mounting Plane (mm) 8
Overall Diameter (mm) 46
Magnet Diameter (mm) 19.5
Installation Cut-out Diameter (mm) 40
Magnet Weight (Oz) 0.25
Magnet Type NdFeB-N38
System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 40
Frequency Response (Hz) 1500>20000
Impedance (Ohm) 4
Sensitivity (db/1Wm) 92

Speaker Data


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 90
Total Magnet Weight (Oz) 12.5
Optimum Bass Enclosure Type IB
Voice Coil Former Spec Kapton
Voice Coil Type SV Type (200 Degree C)
Voice Coil External Diameter (mm) 38.9
Voice Coil Internal Diameter (mm) 38.6
Voice Coil Winding Height (mm) 9
Voice Coil Winding (Layers) 2
Cone Type Fiberglass
Spider Compliance 0.5
Spider Type Progressive
Spider Diameter (mm) 97
Spider Design Single
Surround Rubber
Surround Material Rubber
Tinsel Wire High Temperature
Terminal Screw type

System Power


Full System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) 160

Technical Parameters


SPL (db/1Wm) 90
