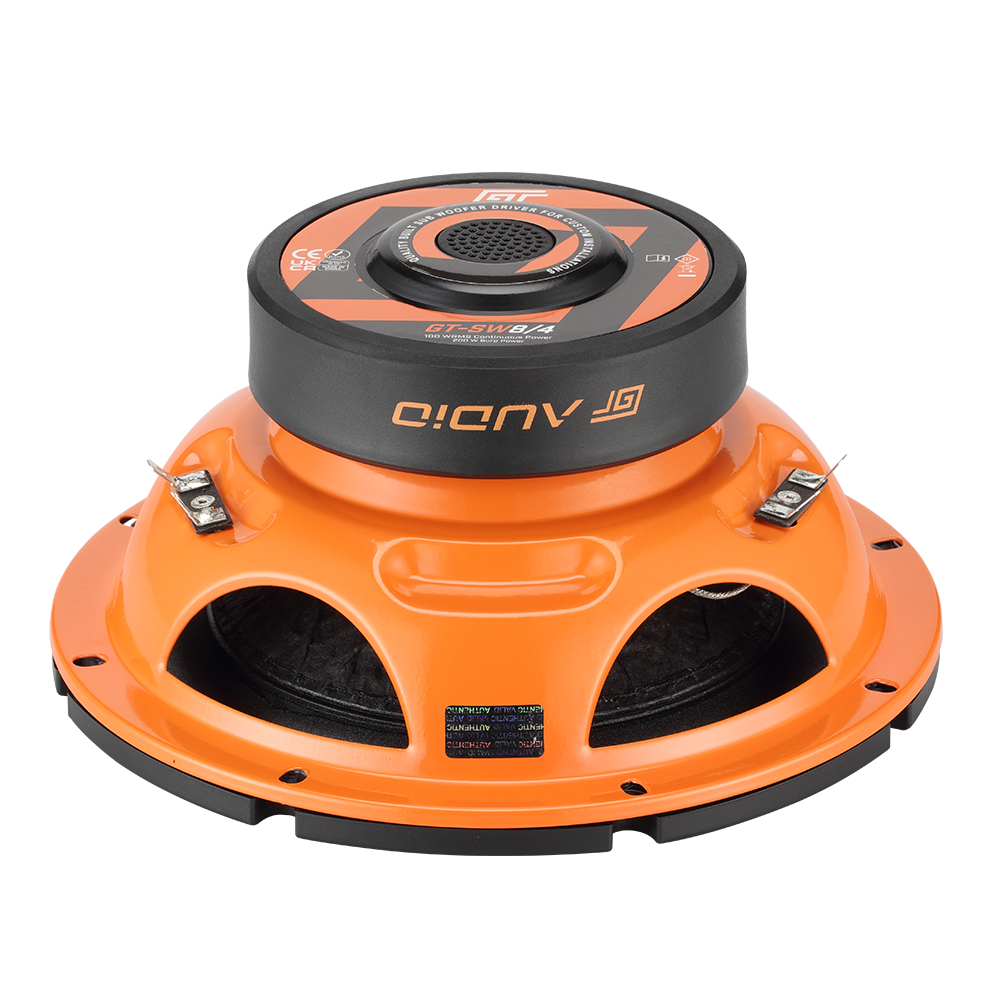

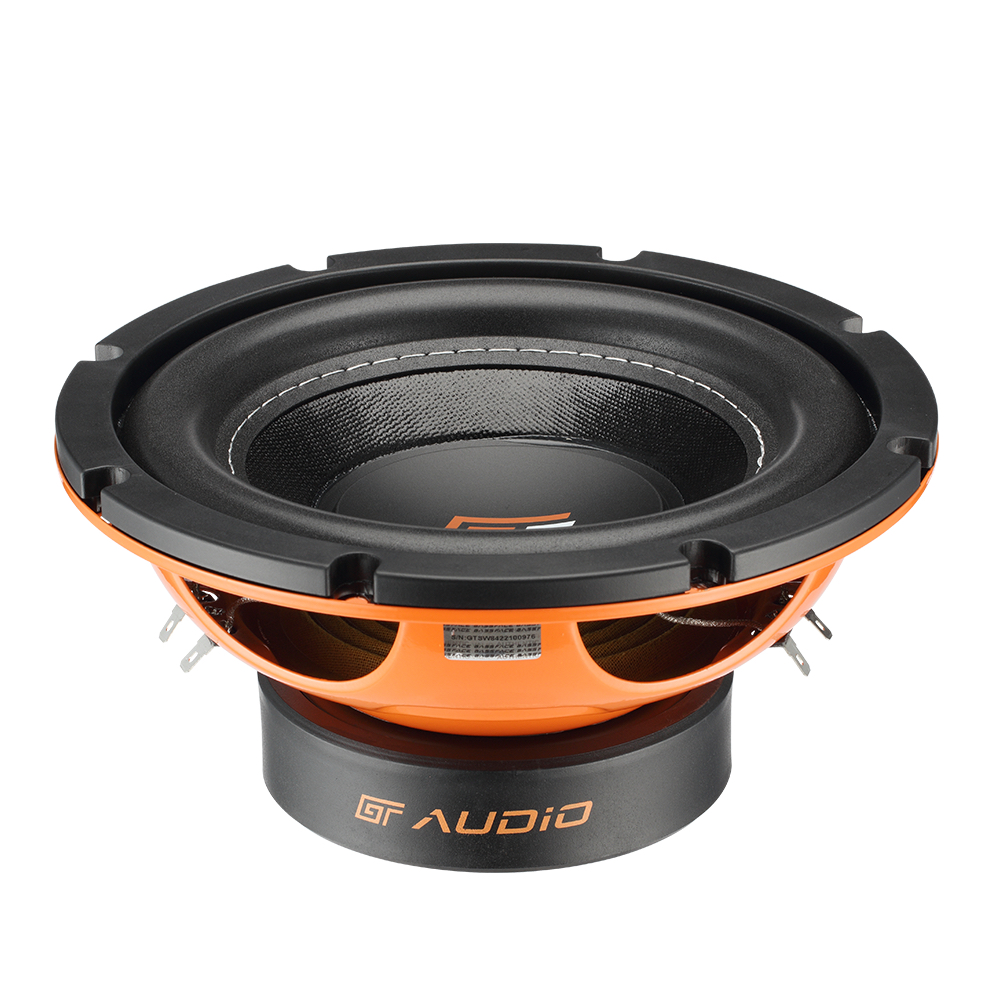

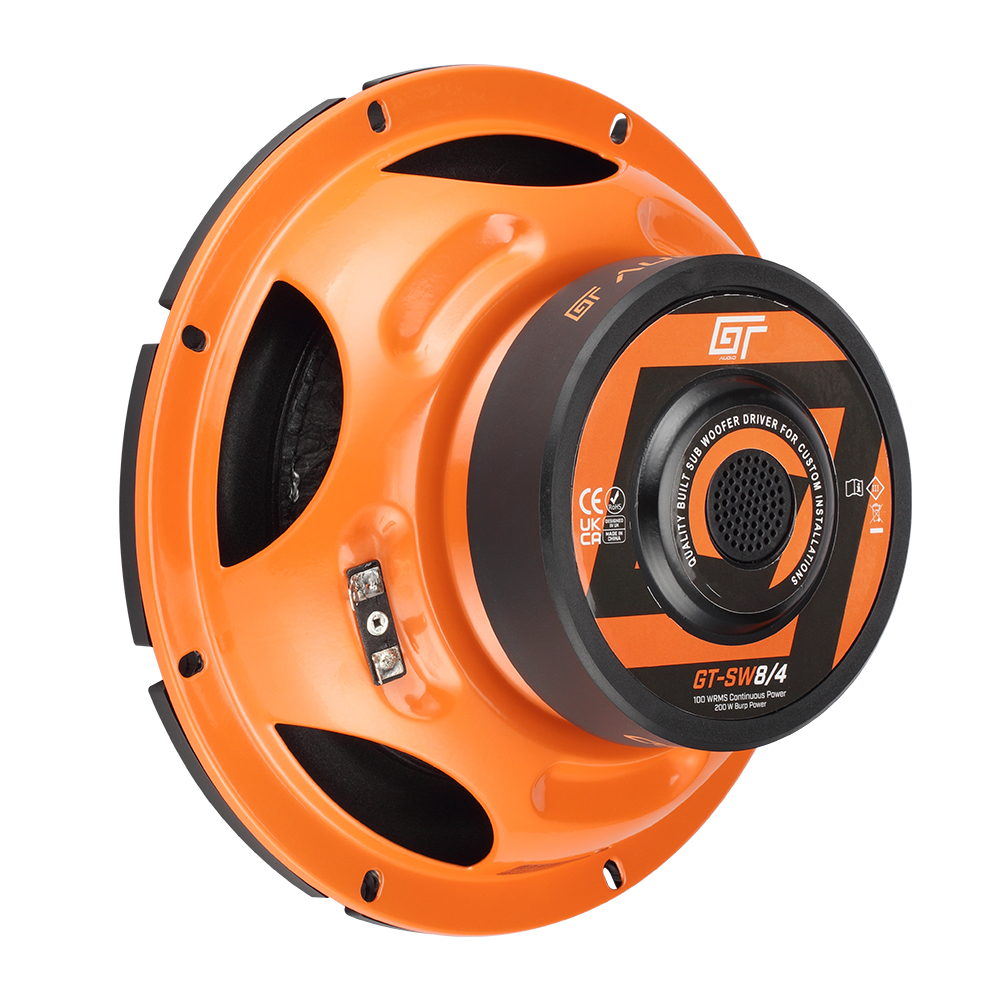

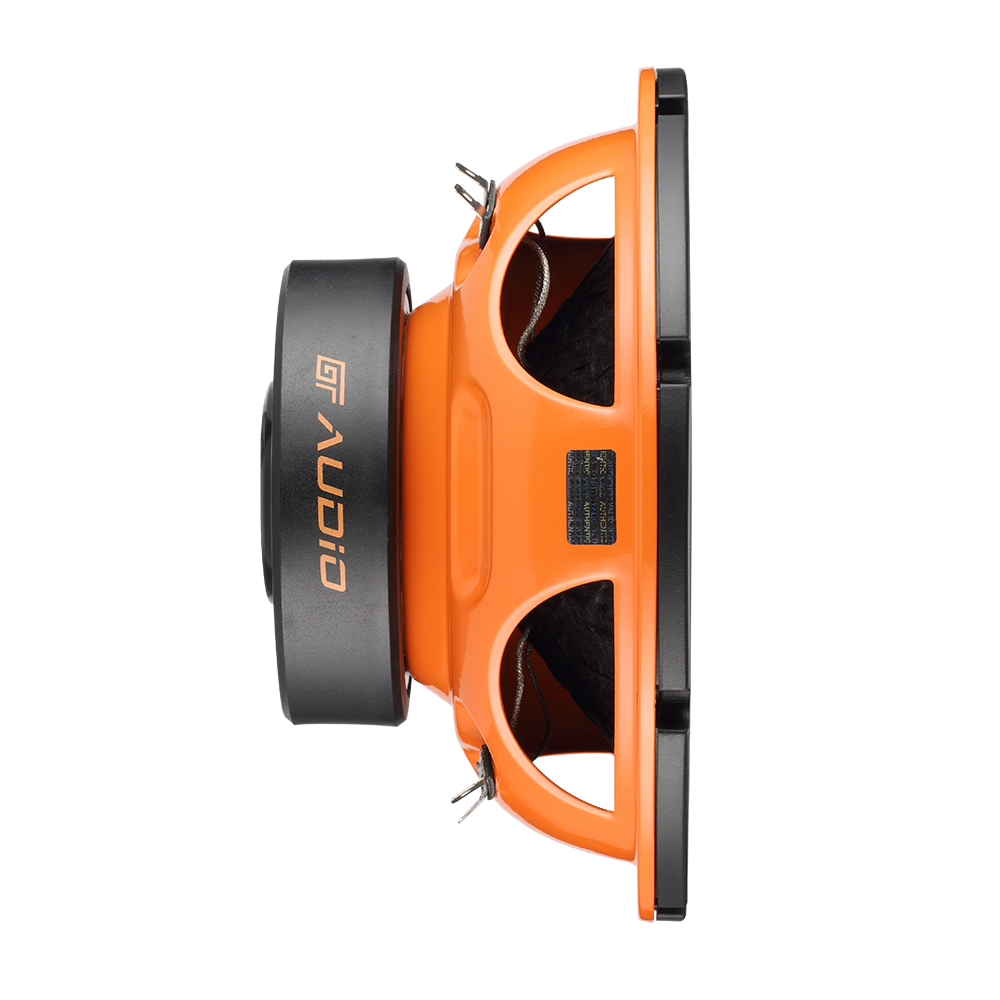

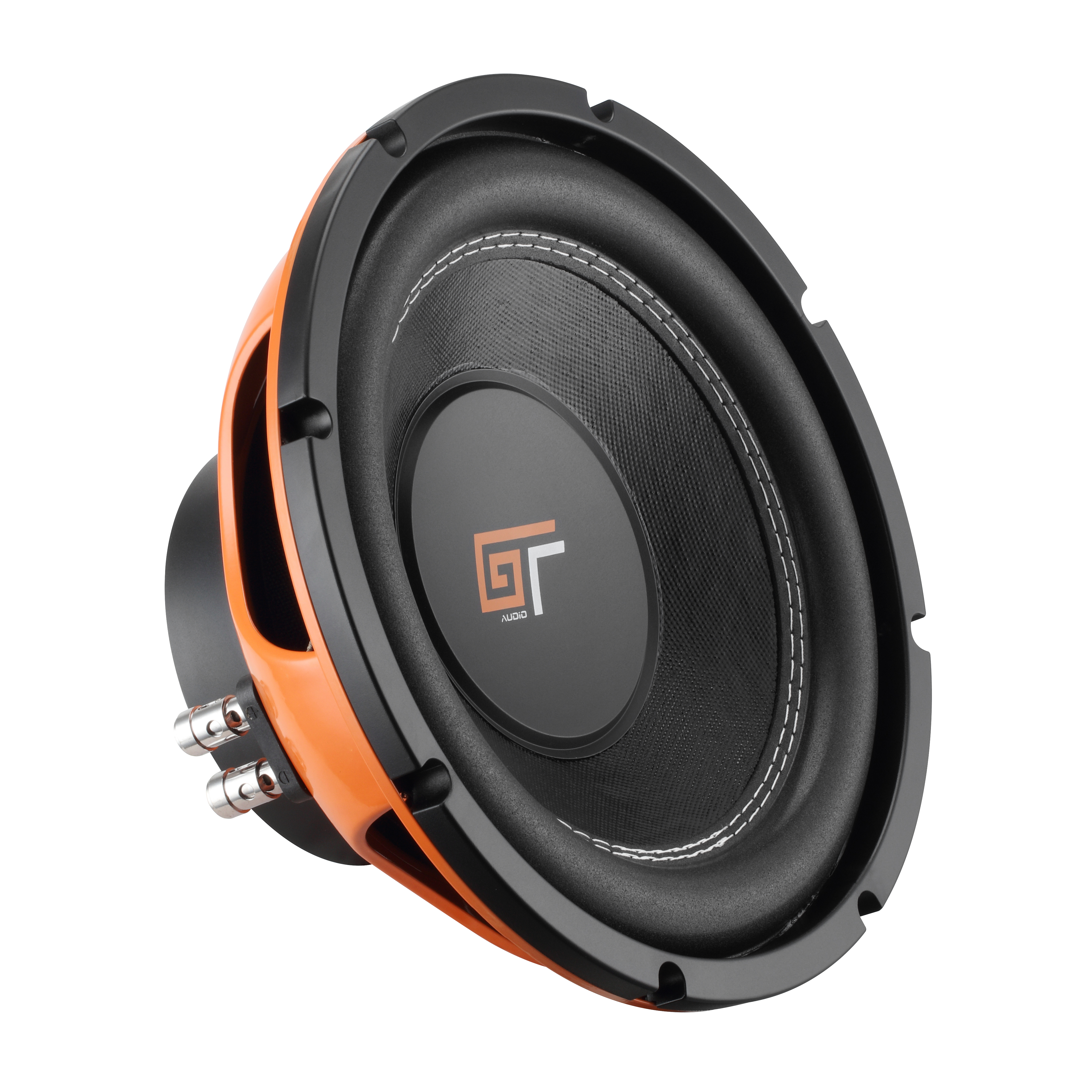

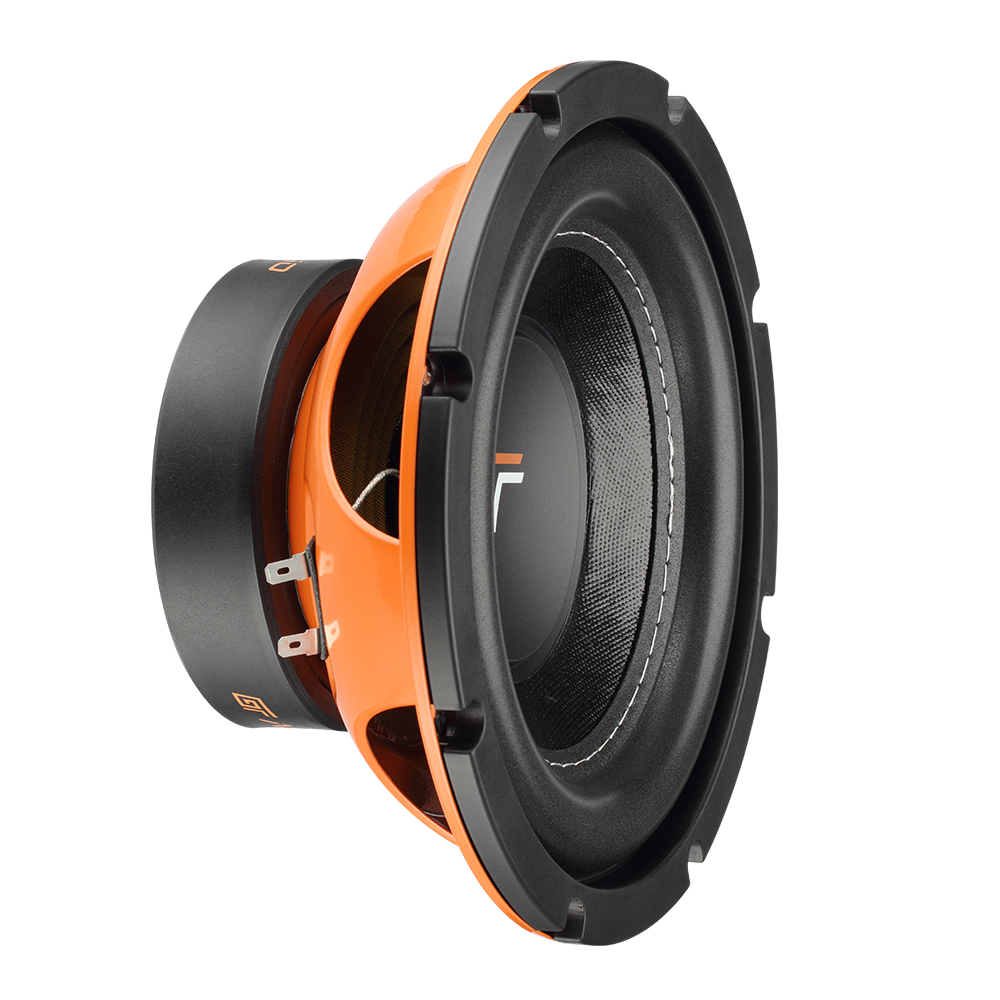

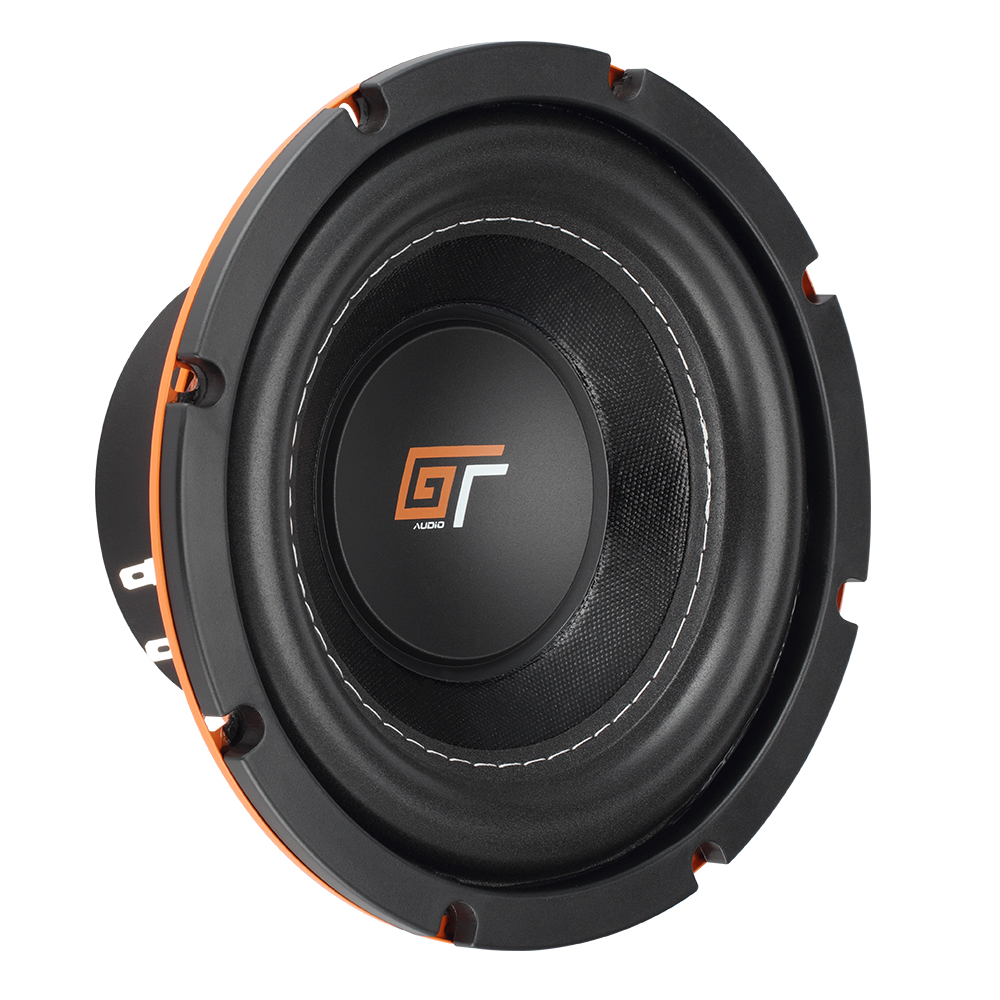

GT Audio GT-SW8/4 8" 20cm 2x4Ohm DVC Subwoofer 100w RMS (Sealed/Ported Enclosures/Free Air)


World RRP: £30.95

Category: SUBWOOFERS

Product code: GT-SW8/4

High quality dual voice coil subwoofer offering performance without excessive cost. Lightweight construction for efficient performance even when powered from modest amplifiers. Extremely musical bass, by virtue of the complete lack of mass. As a subwoofer is made more and more powerful the heavier and heavier resultant cone and motor weight blunts the musicality, creating the familiar one note bass that we seem to be used to today. The GT-SW range is a breath of fresh air and delivers back that exciting, hard, driving sound. Unbeatable bass performance at the price point.

Technical Highlights


  • 100W Continuous RMS / 200W Burp Power Handling
  • 1.5 Inch Dual 4 Ohm Round Wire 4 Layer Voice Coil
  • Works In Free Air Or Ported/Sealed Enclosures 0.88 Cuft
  • Linear Medium Compliance 1x1 Spider Pack
  • Smooth Foam Surround & Non Pressed Paper Cone
  • High Quality Y25 Magnet 110x20mm
Technical Highlights

Series


GT Audio

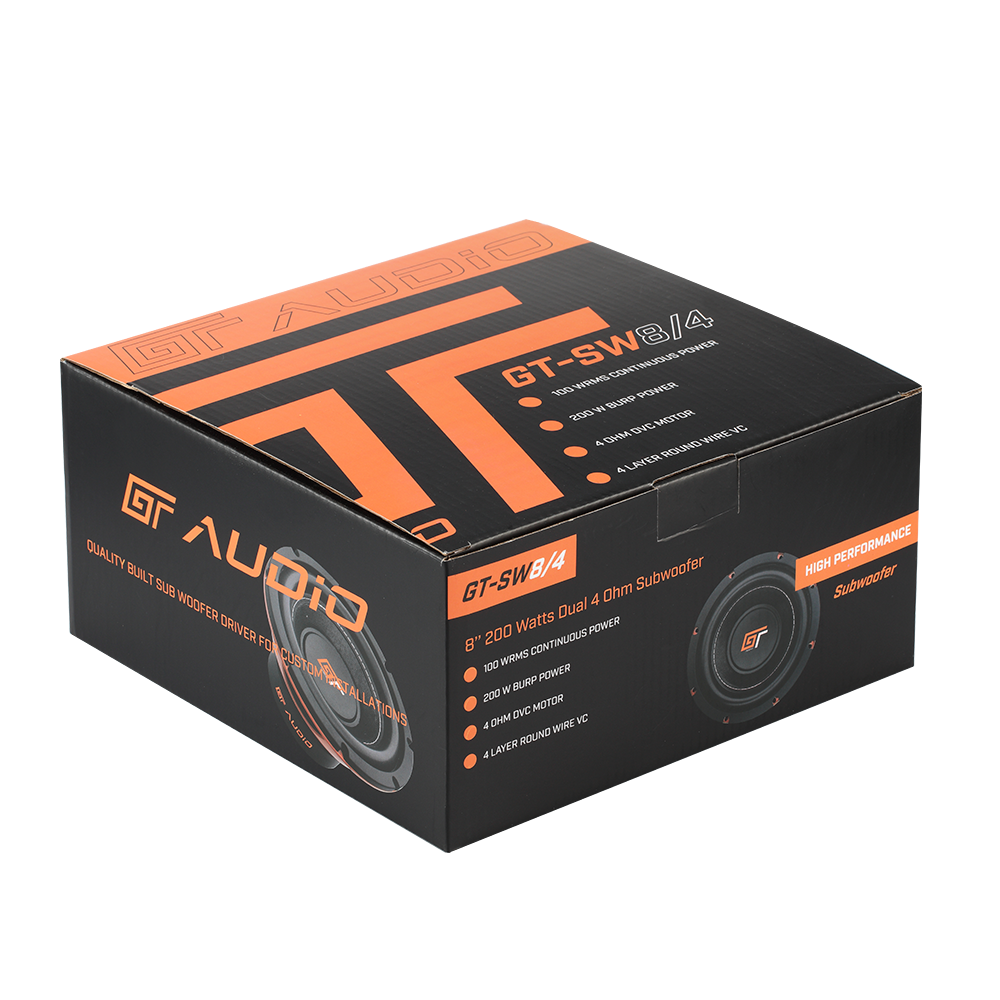

What's In The Box?


What's In The Box?
  • 1 x Subwoofer
  • 1 x Data Sheet
  • 1 x GT Audio Sticker

Version History


Developed over an extended period and brought to market Q3 2023 for the launch of the GT Model range.

Key Facts


Product Category Subwoofers
Version 1
Series GT Audio
First Added 16/11/2022
Last Modified 25/01/2024
Barcode 5060905111121
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 1500
Product Height (mm) 105
Product Length (mm) 211
Product Width (mm) 211
Complete Product Pack Weight (g) 1700
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Speaker Data


Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 200
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 100
Overall Diameter (mm) 211
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 110
Installation Cut-Out Diameter (mm) 198
Overall Depth (mm) 105
Mounting Depth (mm) 92
Front Protrusion From Mounting Plane (mm) 13
Recommended Frequency Range (Hz) 45>2000
Impedance (Ohm) (Nominal) 4+4
Sensitivity (db/1Wm) 90
Total Magnet Weight (Oz) 25
Magnet Size (mm) 110*20
Magnet Type Y25
Magnet Qty 1
Top Plate thickness (mm) 5
Back Plate Thickness (mm) 5
Optimum Bass Enclosure Type Ported/Sealed/Free Air
Recommended Bass Enclosure Volume (CuFt) 0.88
Recommended Bass Enclosure Tuning Frequency (Hz) 44
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil External Diameter (mm) 42
Voice Coil Internal Diameter (mm) 38.6
Voice Coil Winding Height (mm) 15
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 116
Spider Design 1x1
Surround Smooth
Surround Material Foam
Tinsel Wire Single
Terminal Spade
