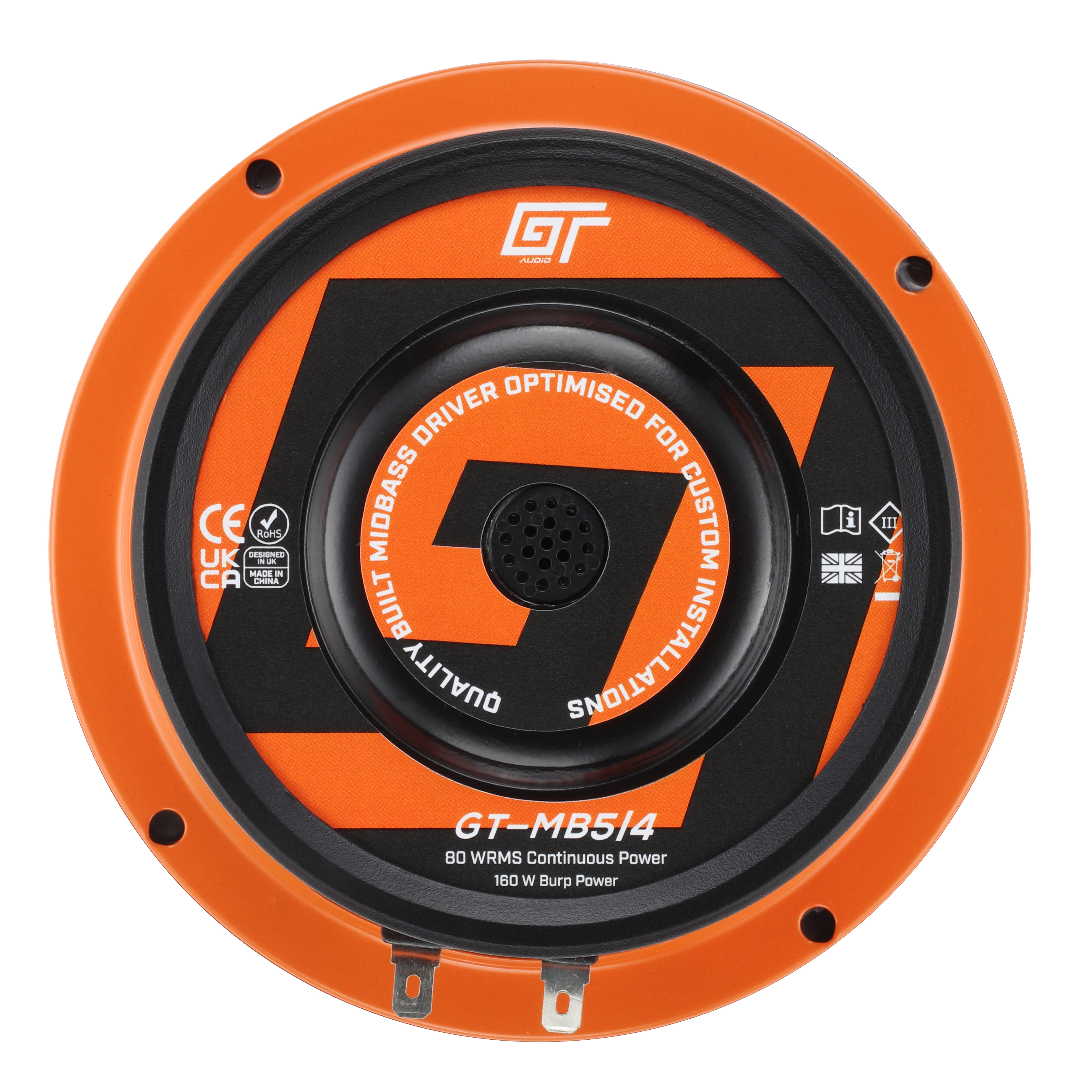

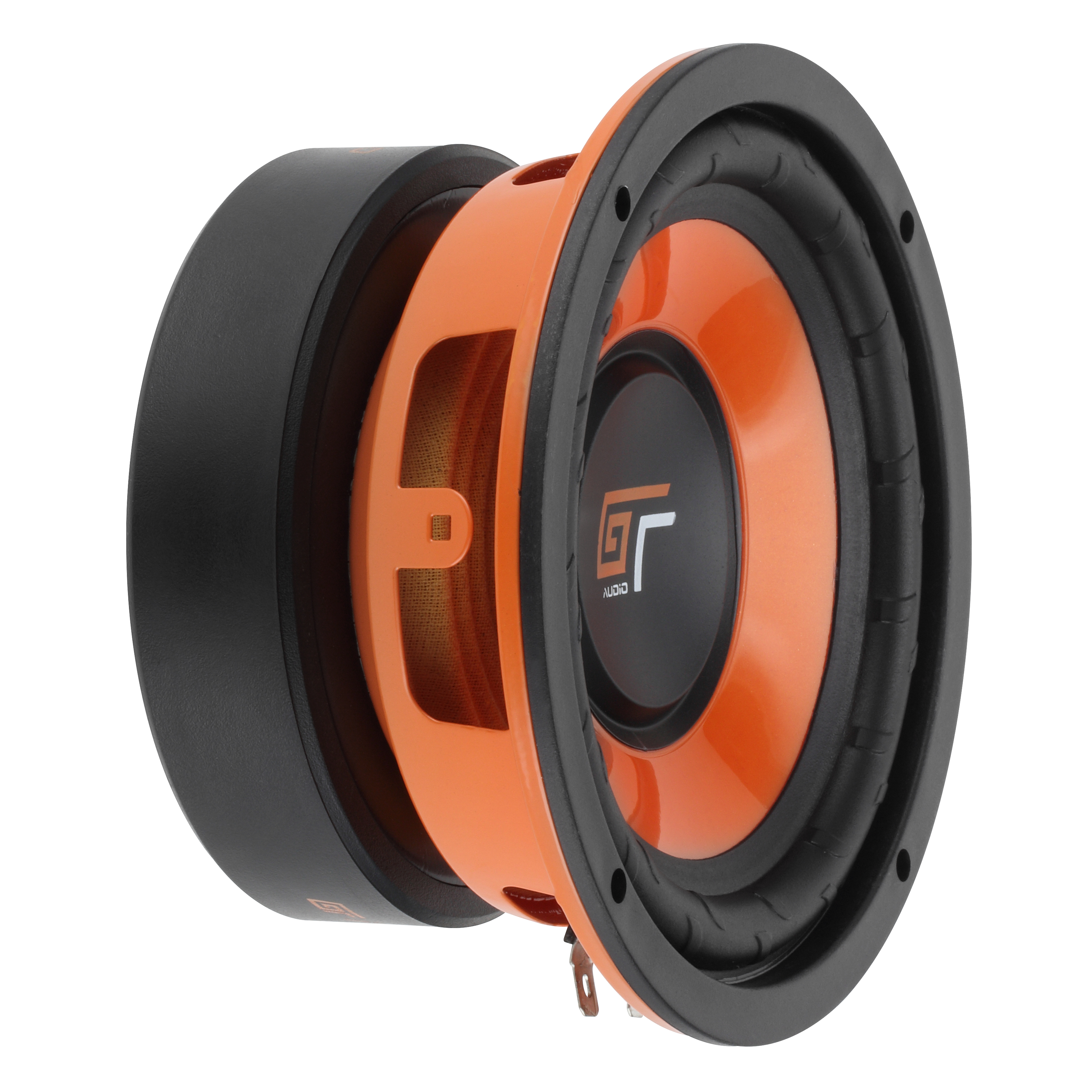

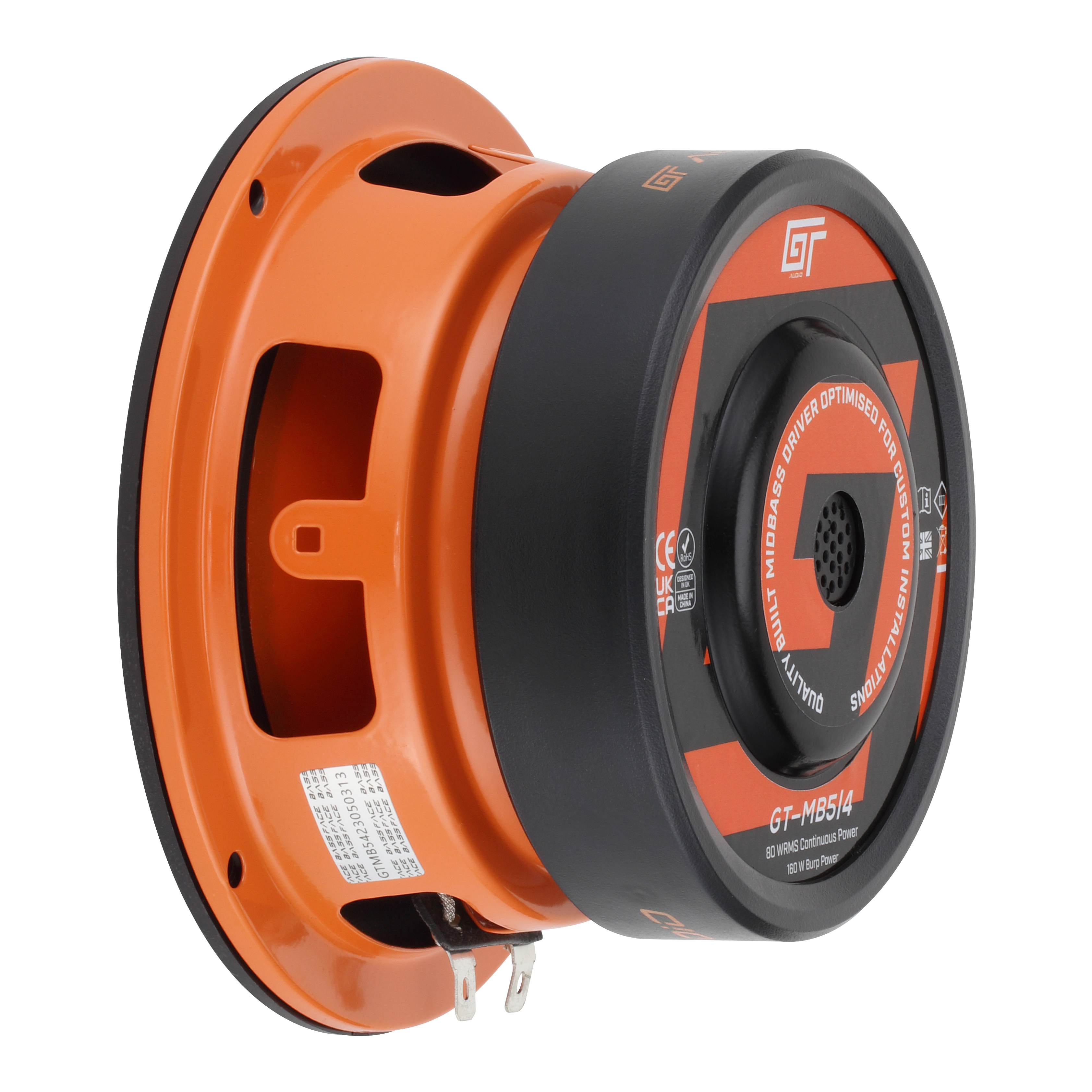

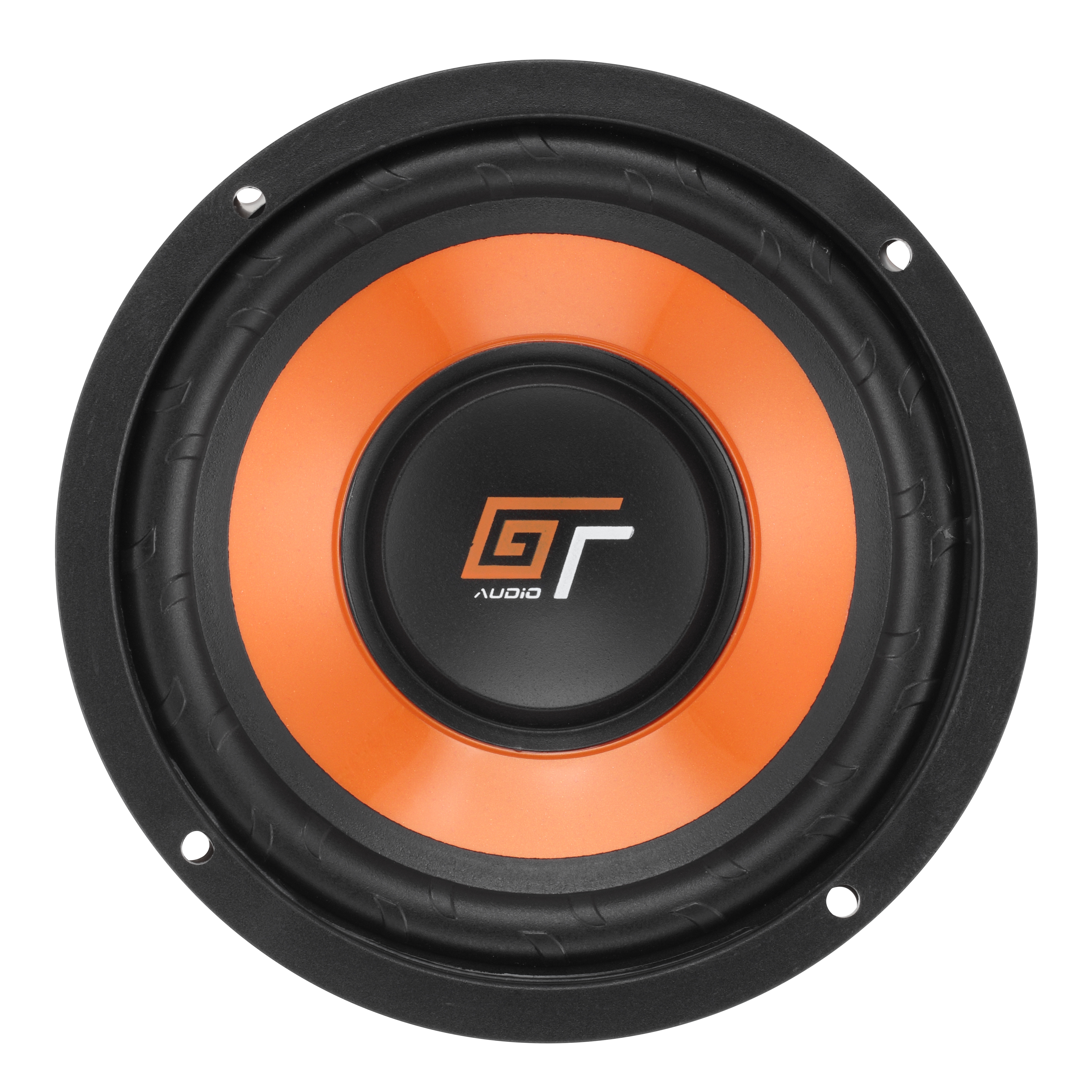

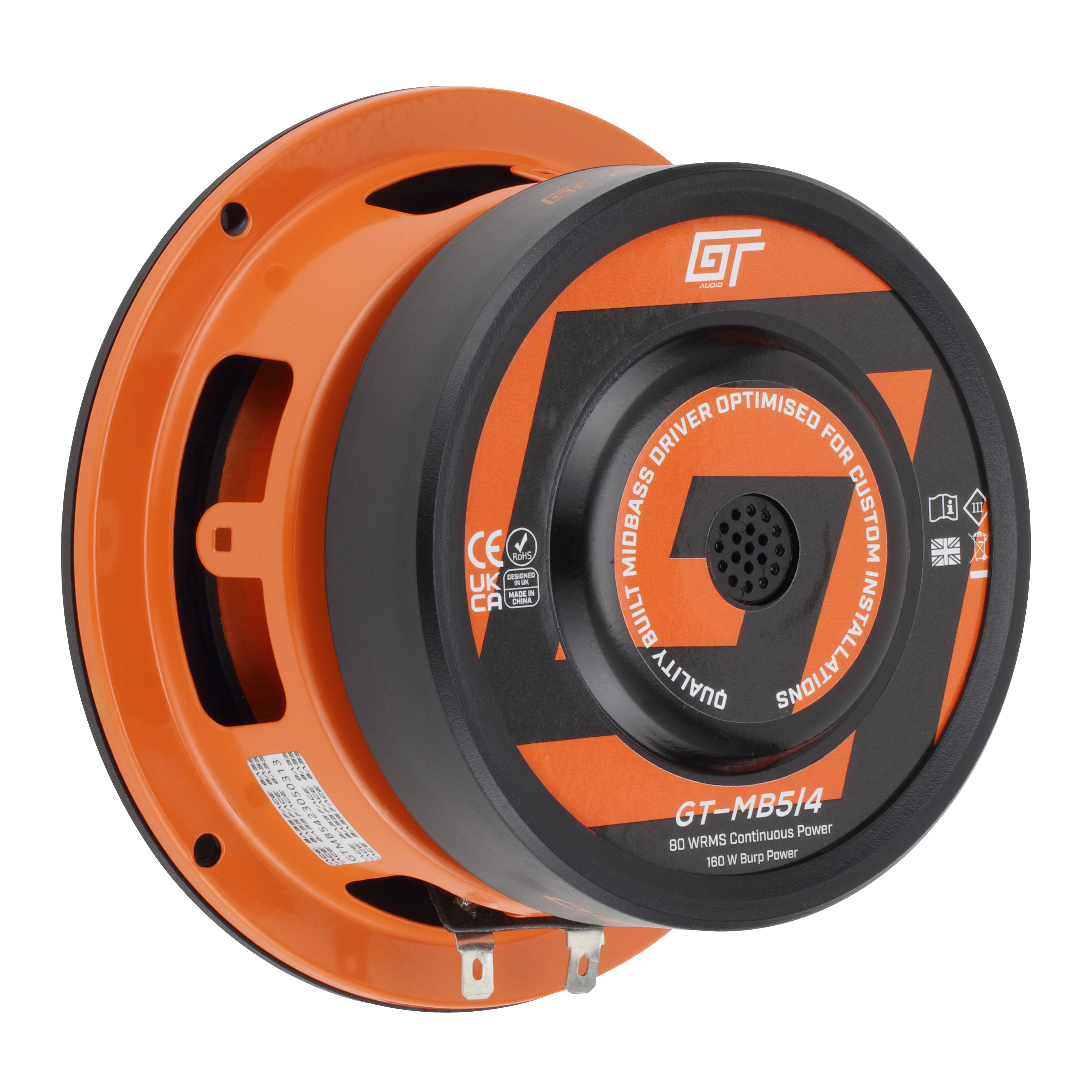

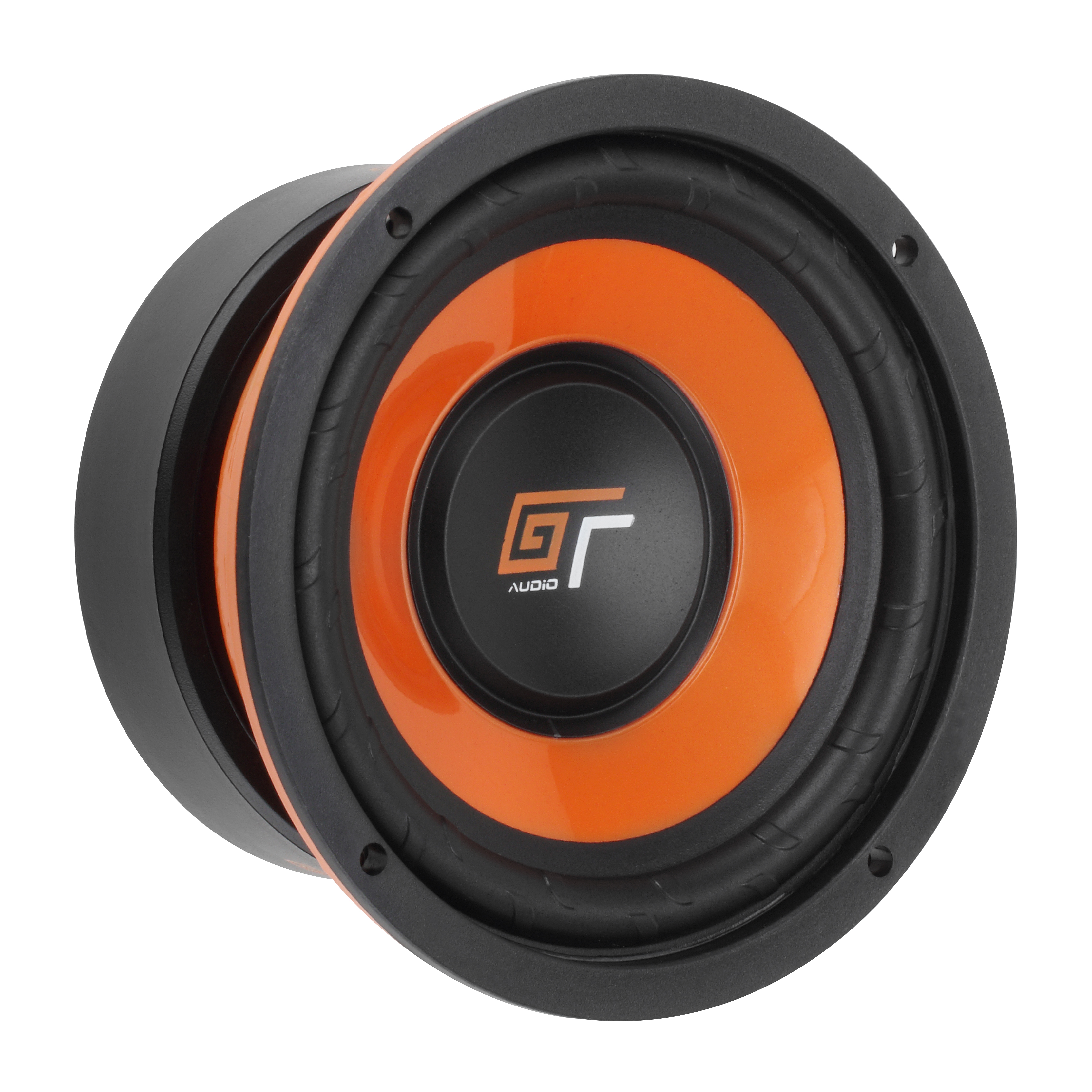

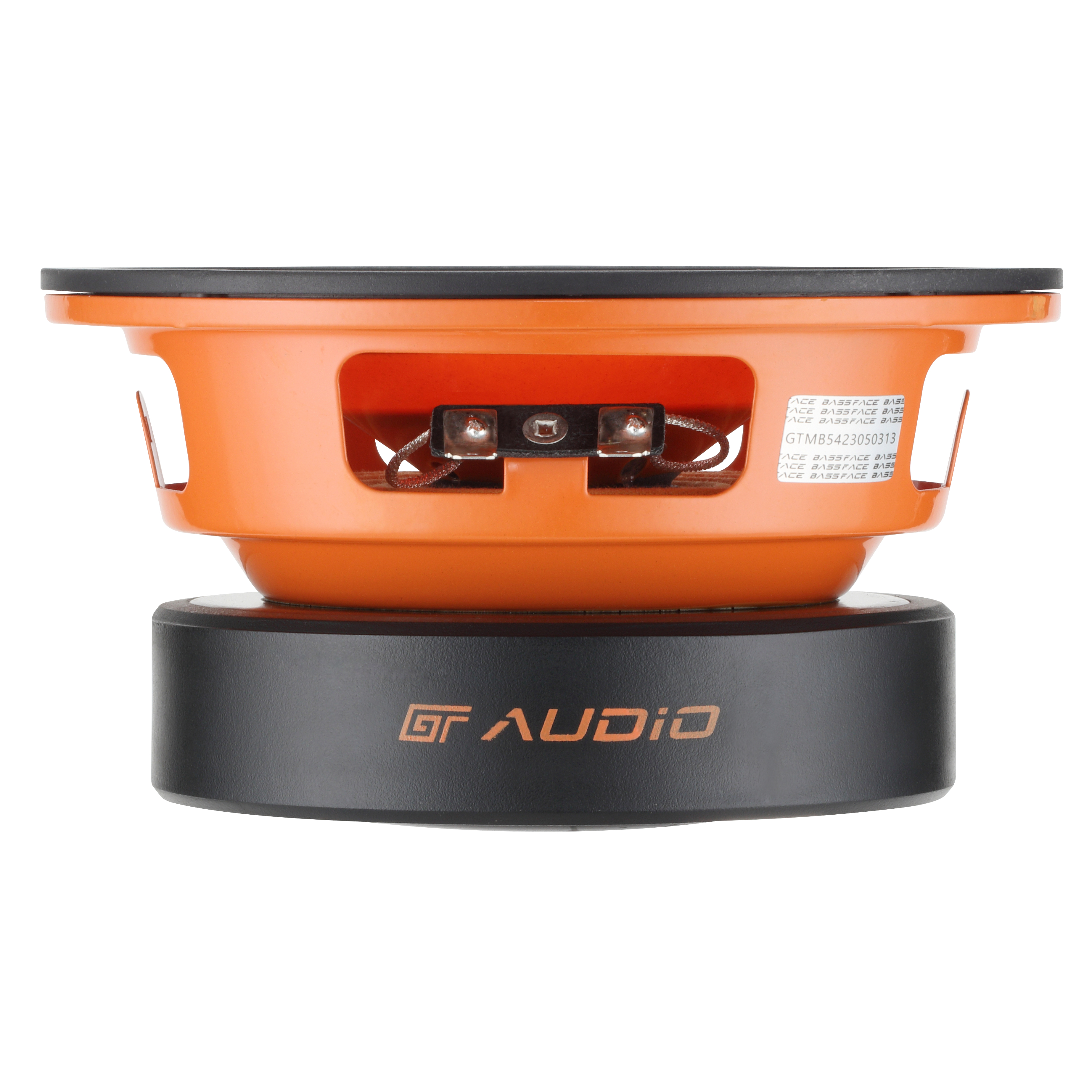

GT Audio GT-MB5/4 5" 13cm 4Ohm 80w RMS Component Midbass Speaker


World RRP: £19.95

Category: Midbass & Midrange Speakers

Product code: GT-MB5/4

The GT Audio MB series is designed to offer the enthusiast a highly affordable entry point to component oriented audio - the MB5/4 being a 131mm chassis (113mm hole cutout) unit that plays midbass like a champ! From below 100Hz up to 300Hz the speaker will kick out rock hard transients and really help to underpin your system. Of course, the installer has to provide the right environment in terms of chassis location/baffle and lay on some clean, well crossed over power but given those points we are sure that the MB series will impress. It is also possible to press the speakers into use as a midrange, with notable recovery of the curve around 2/3Khz and with a little equalisation they can be used with a tweeter as a full range setup.

Technical Highlights


  • 130mm / 5.3" High Performance 80W RMS Midbass Driver
  • Lightweight ABS Cone & Nitrile Rubber Surround
  • 1" Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider
  • High Strength Y30 Motor With 100x15mm Magnet
  • Carefully Selected Stamped Steel Basket
  • Recommended Frequency Range: 70>1000 Hz
  • Full Documentation To Assist With Projects
Technical Highlights

Series


GT Audio

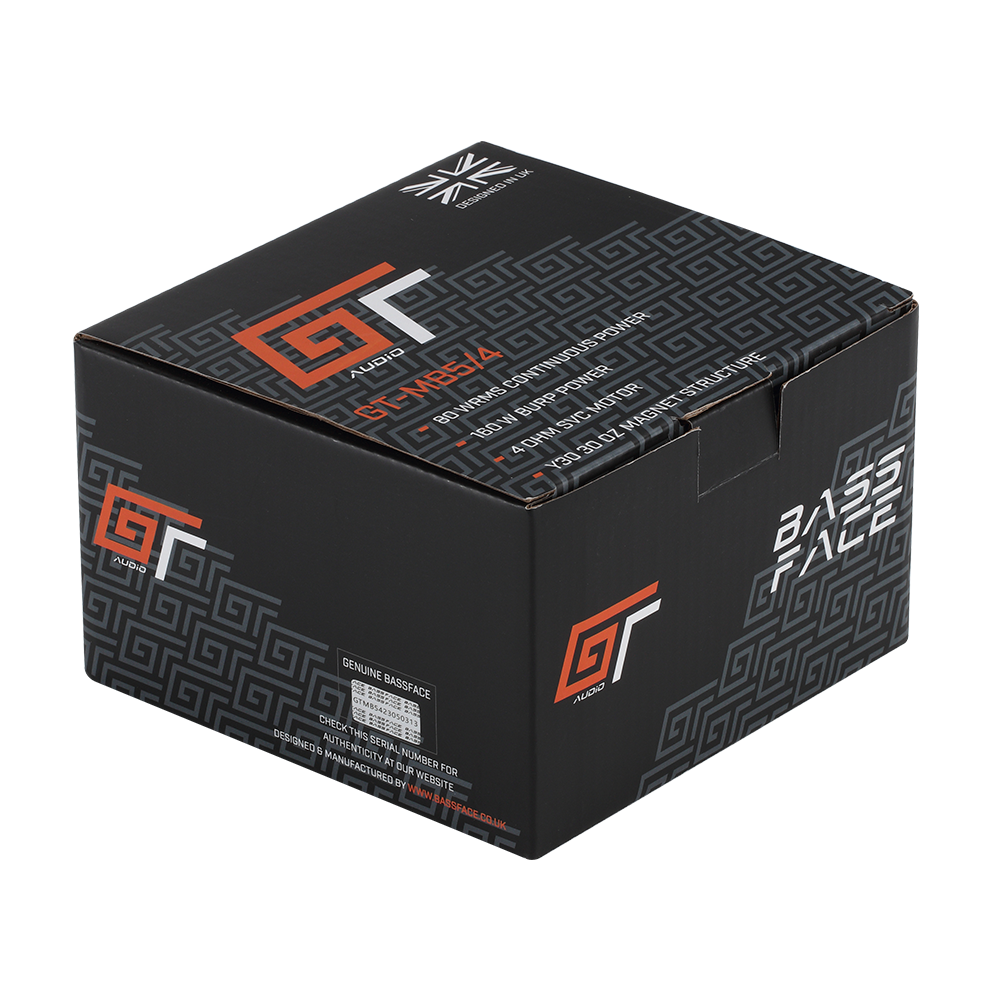

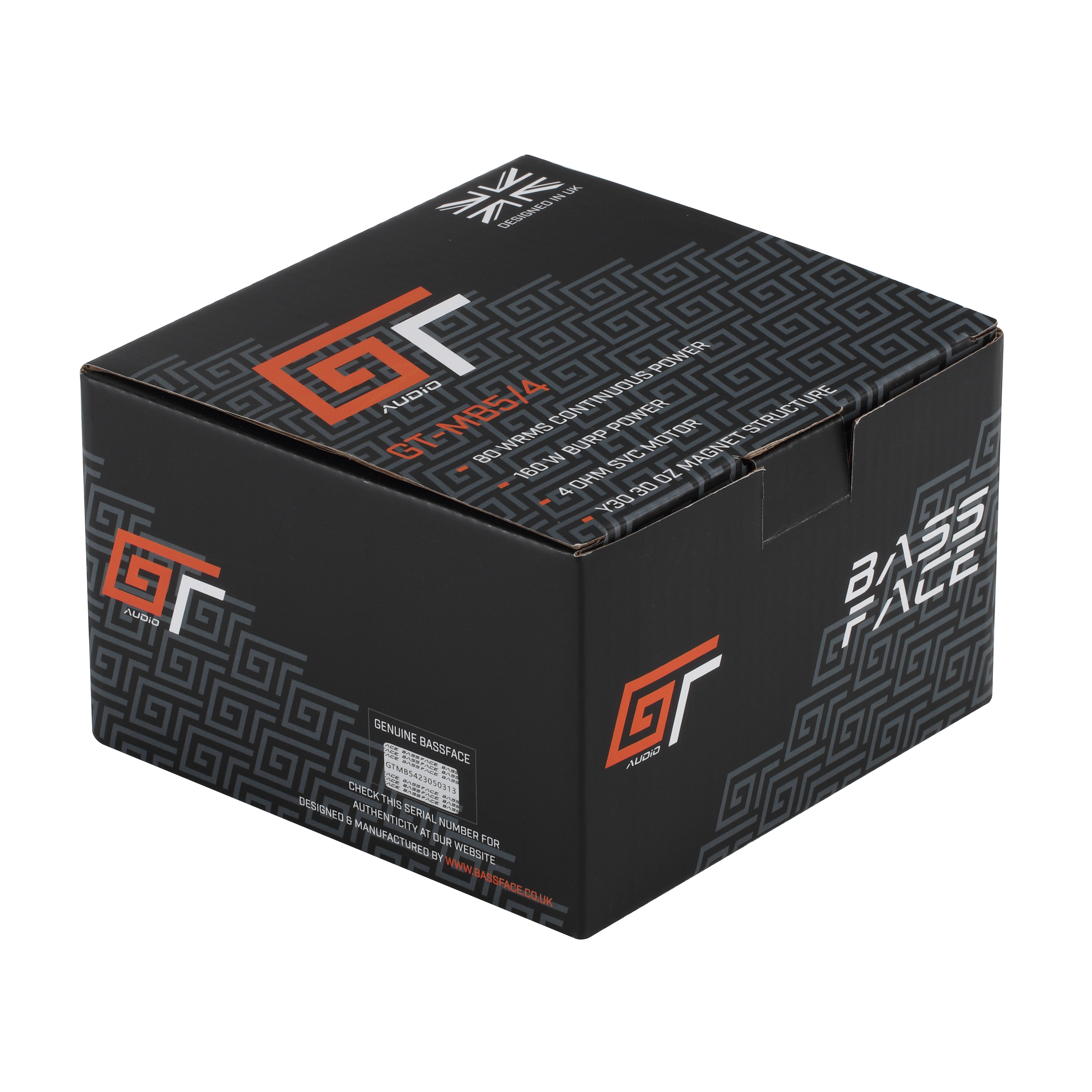

What's In The Box?


What's In The Box?
  • 1 x Midbass Speaker
  • 1 x Data Sheet
  • 1 x GT AUDIO Sticker

Key Facts


Product Category Midbass & Midrange Speakers
Version 1
Series GT Audio
First Added 12/06/2023
Last Modified 25/01/2024
Barcode 5060905111497
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 1000
Product Height (mm) 71
Product Length (mm) 131
Product Width (mm) 131
Complete Product Pack Weight (g) 1200
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Speaker Data


Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 160
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Overall Diameter (mm) 131
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 100
Installation Cut-Out Diameter (mm) 113
Overall Depth (mm) 71
Mounting Depth (mm) 63
Front Protrusion From Mounting Plane (mm) 8
System Frequency Response (Hz) 70>1000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 87.24
Magnet Size (mm) 100x15
Magnet Type Y30
Magnet Qty 1
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Internal Diameter (mm) 25.9
Voice Coil Winding (Layers) 2
Cone Type ABS Plastic
Spider Compliance Medium
Spider Type Linear
Spider Design Single
Surround Single Roll
Surround Material Rubber
Tinsel Wire Single
Terminal Spade

Technical Parameters


Xmax Single Way Total (mm) 2.5
