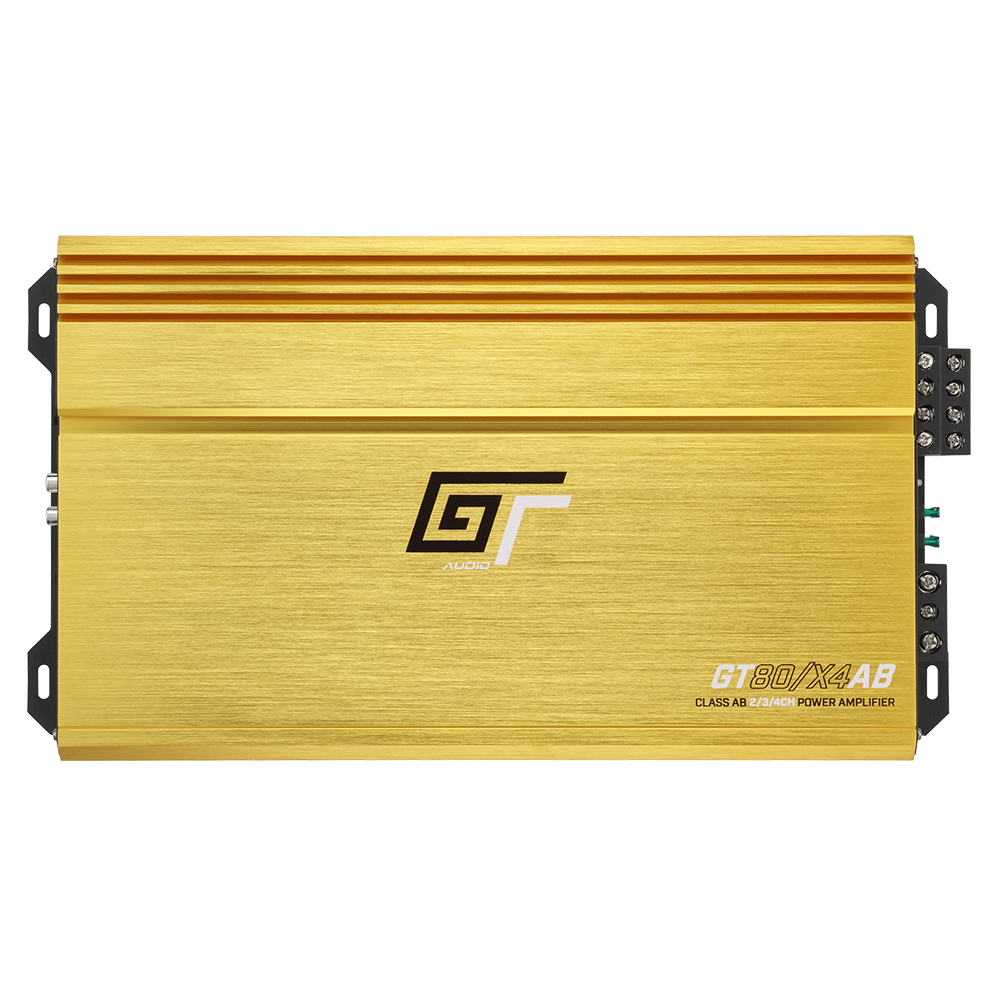

GT Audio GT-80/x4AB Class AB 4/3/2 Channel Full Range Amplifier 440w RMS


World RRP: £98.95

Category: AMPLIFIERS

Product code: GT-80/x4AB

GT Audio offers a very high level of performance with a relentless eye to offering the best possible value for money. These GT amplifiers are a traditional Class AB product, offering outstanding sound quality in return for conventional form factor. Features of note are a very useful crossover section that has the ability to cross over the HPF all the way up to 3k which is very helpful for running 3 way style speaker kits, and an input section happy to deal with a 6.5V line input. The amplifier is happy to operate in bridged configuration as either a 2 channel or tri-mode setup but, as ever, care must always be taken to observe minimum impedance requirements in system design for reliable and high performance.

Technical Highlights


  • Class AB Amplifier - Pure Sound Multi Channel 4/3/2 Channel Amplifier
  • Power Output 4x110W RMS @ 2 Ohm Load
  • Power Output 4x80W RMS @ 4 Ohm Load
  • Power Output 2x220W RMS @ 4 Ohm Load
  • 16V Capable RCA Inputs

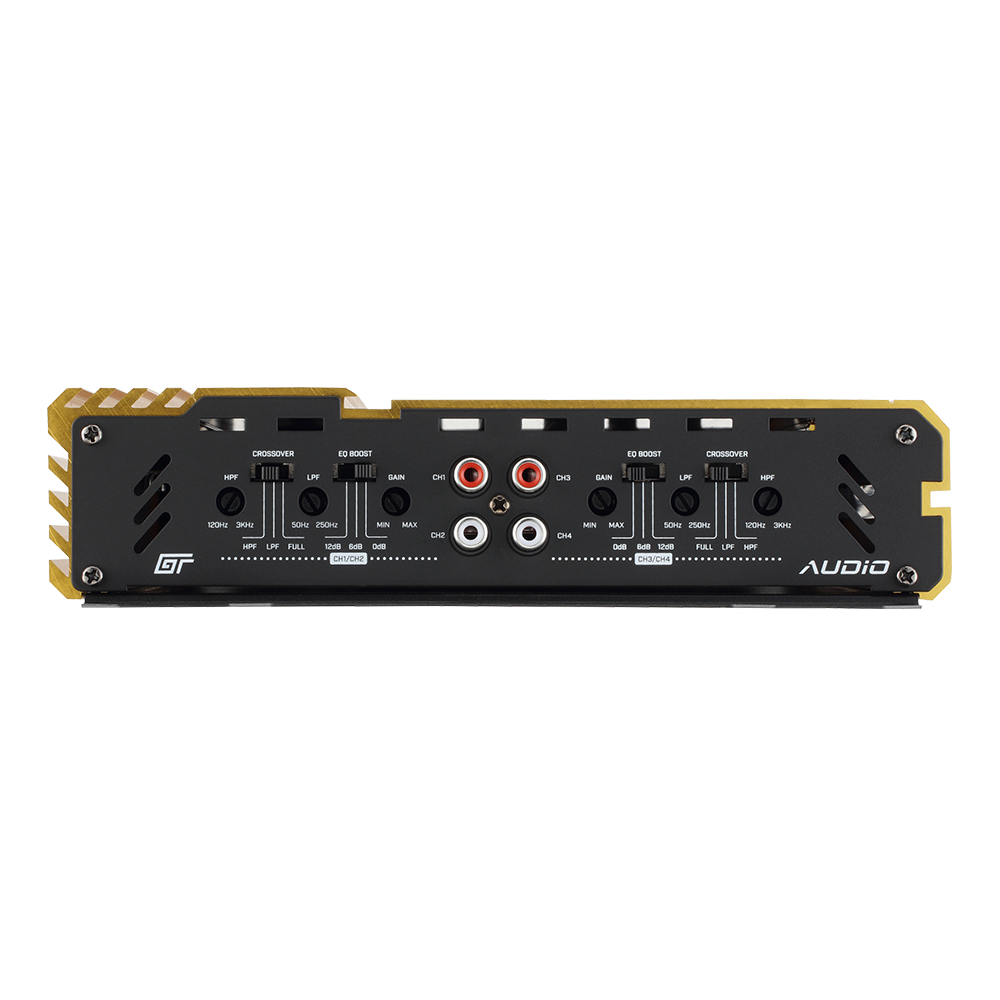

  • 50>250Hz LPF / 120>3000Hz HPF Crossovers

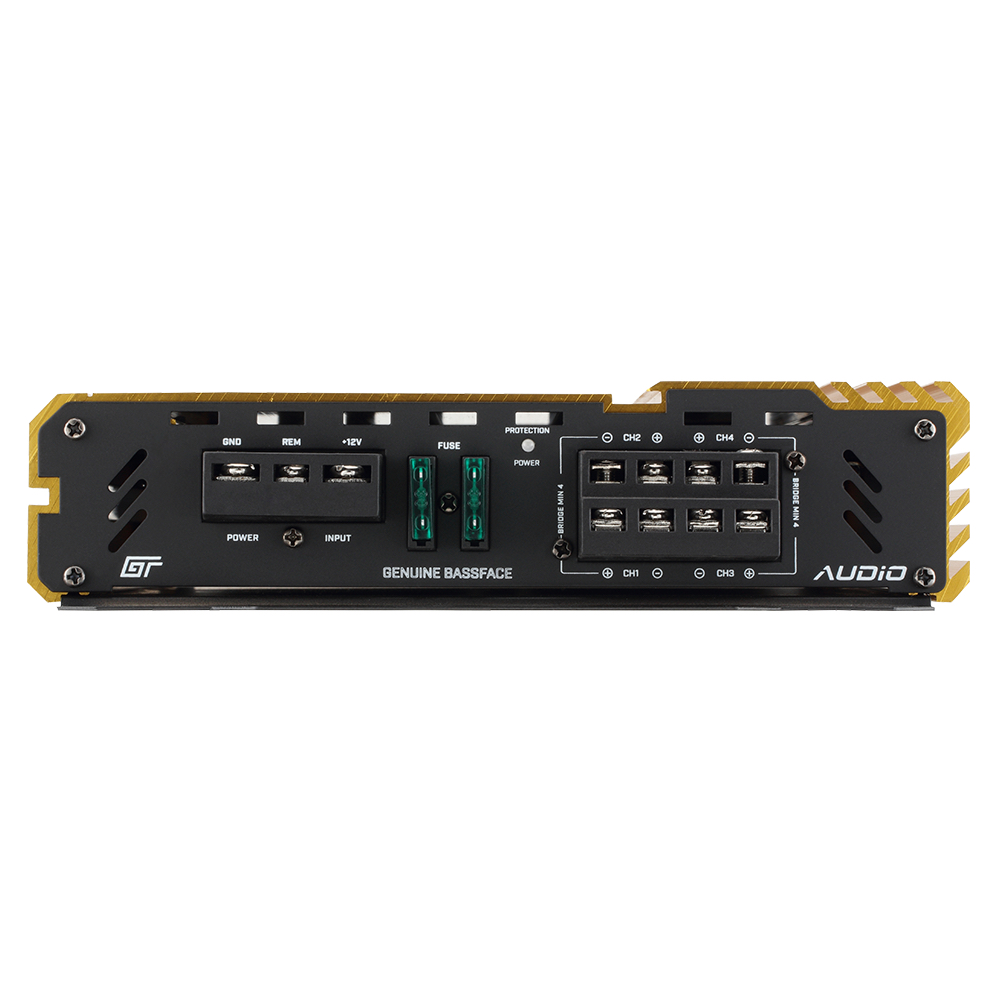

  • Minimum Power Supply 70A via 1x 8AWG Input
  • 20>25000Hz Response / 90dB Signal To Noise Ratio
  • 16V Capable Power Input

Series


GT Audio

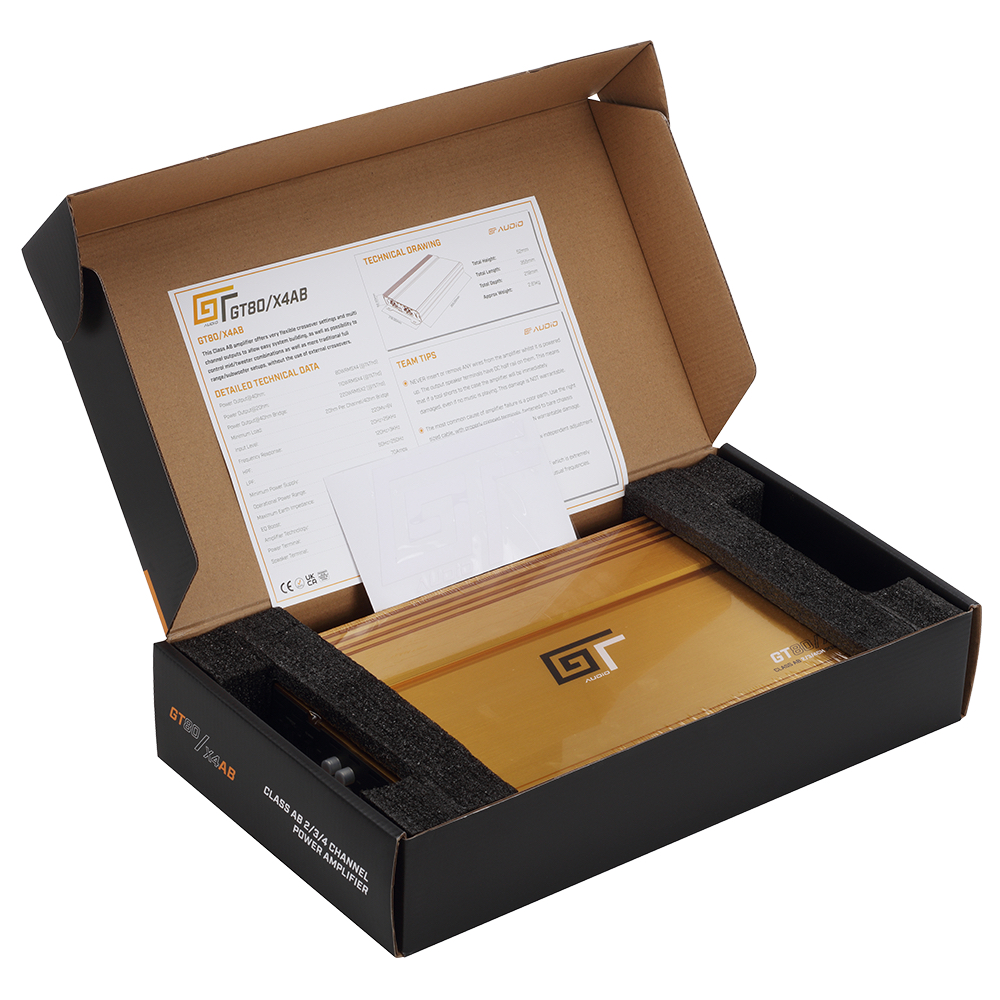

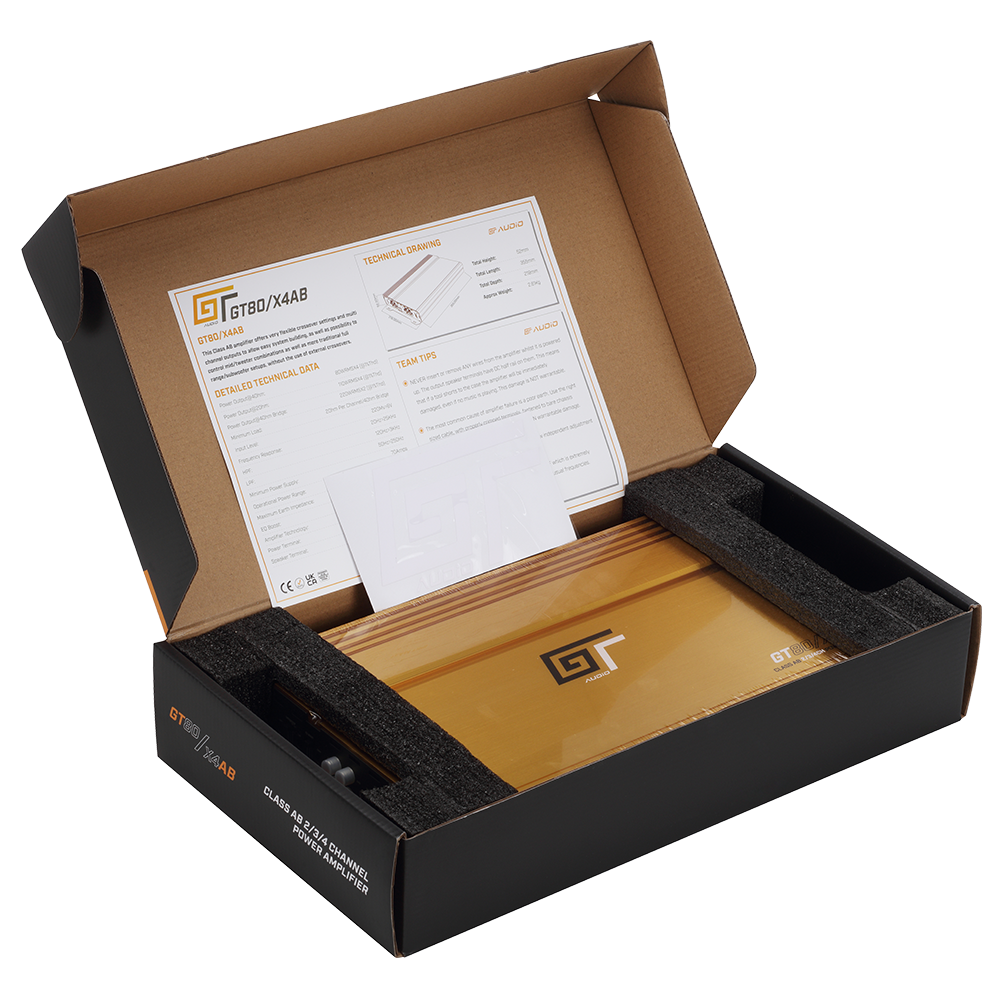

What's In The Box?


  • 1 x Amplifier
  • 1 x GT Audio Sticker
  • 1 x Documentation Set
What's In The Box?

Key Facts


Product Category Amplifiers
Version 1
Series GT Audio
First Added 08/08/2022
Last Modified 26/01/2024
Barcode 5060905110988
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 2610
Product Height (mm) 52
Product Length (mm) 355
Product Width (mm) 219
Complete Product Pack Weight (g) 2900
Operating Temperature (Degrees Celsius) 0-50
Weatherproof Rating In-Car Only
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Amplifier Data


Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 80x4
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 110x4
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 220x2
Frequency Response (Hz) 20>25000
Signal To Noise Ratio (db) 90
LPF (Hz) 50>250
HPF (Hz) 120>3000
Bass Boost (Db) 0>6>12
Boost Frequency (Hz) 45
Audio Signal Input Voltage (V) 0.2>6
LPF Slope (Db/Oct) 12
HPF Slope (Db/Oct) 12
Amplifier Topology Class AB
Maximum Input Voltage (V) 16
Fuse Rating (Amps) Unfused
Power Wire Input Gauge (AWG) 8
Minimum Recommend Final Load Per Channel (Ohms) 2 Stereo / 4 Mono
Input Impedance (KOhms) 22
Channel Separation (Db) 40
