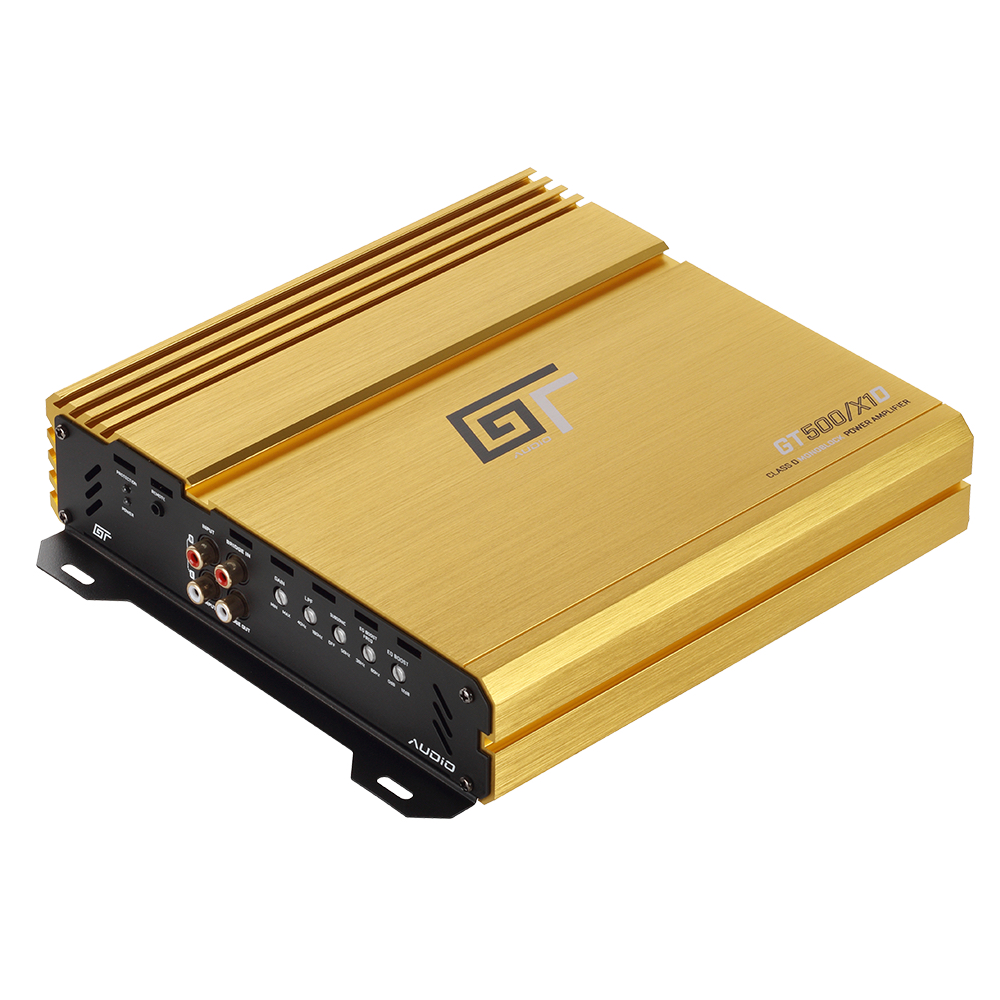

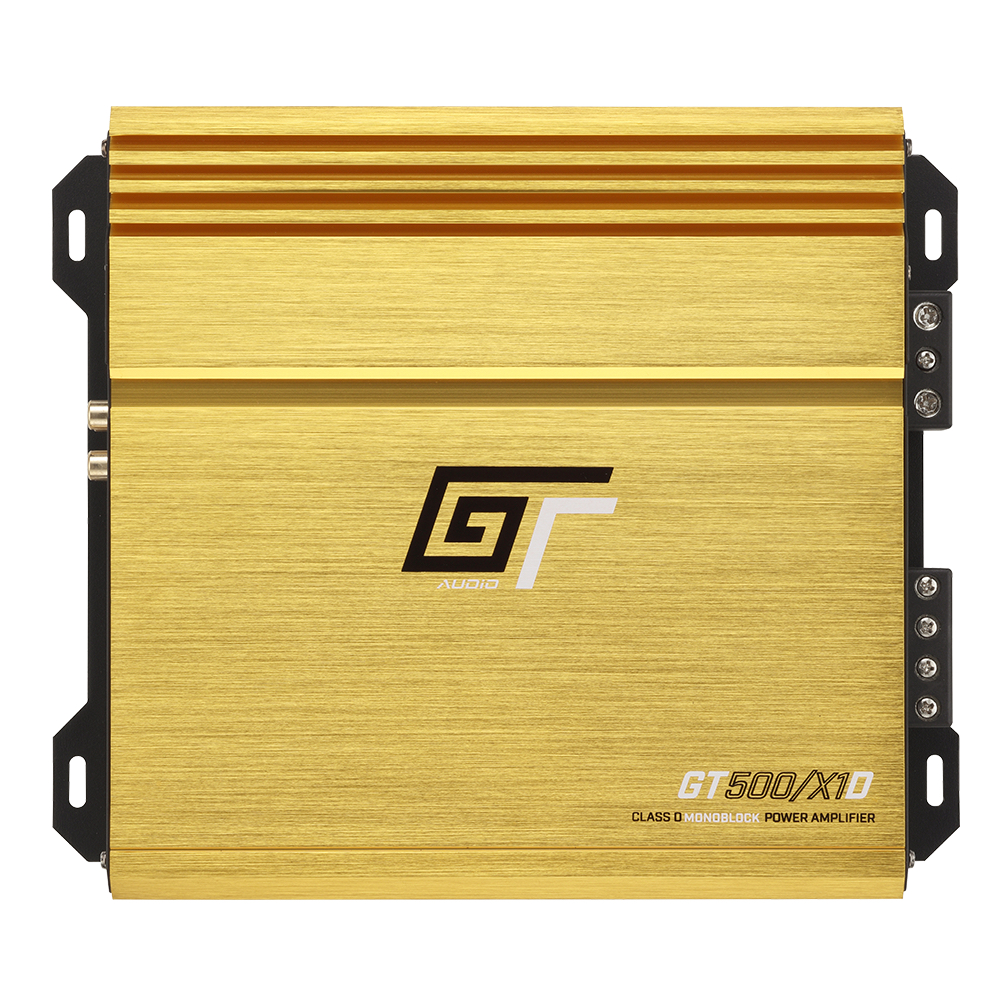

GT Audio GT-500/x1D Class D Monoblock Subwoofer Amplifier 500w RMS


World RRP: £98.95

Category: AMPLIFIERS

Product code: GT-500/x1D

GT Audio offers a very high level of performance with a relentless eye to offering the best possible value for money. These GT amplifiers are a modern Class D design that offers the absolute most performance possible to drive your subwoofer for the cost point. An adjustable low pass crossover is built in, alongside the essential subsonic filter to ensure optimal use of power. The GT Class D amplifiers are 1 Ohm capable and produce their maximum power into this load.

Technical Highlights


  • Class D Technology - Maximum Power Mono Subwoofer Amplifier
  • Power Output 1x500W RMS @ 1 Ohm Load
  • Power Output 1x380W RMS @ 2 Ohm Load
  • Power Output 1x220W RMS @ 4 Ohm Load
  • 16V Capable RCA Input + Line Output
  • 40>180Hz LPF / 0>50Hz HPF Crossovers
  • Minimum Power Supply 60A via 1 x 4AWG Input
  • 10>190Hz Response / 88dB Signal To Noise Ratio
  • 16V Capable Power Input
  • Included Bass Remote & Cable

Series


GT Audio

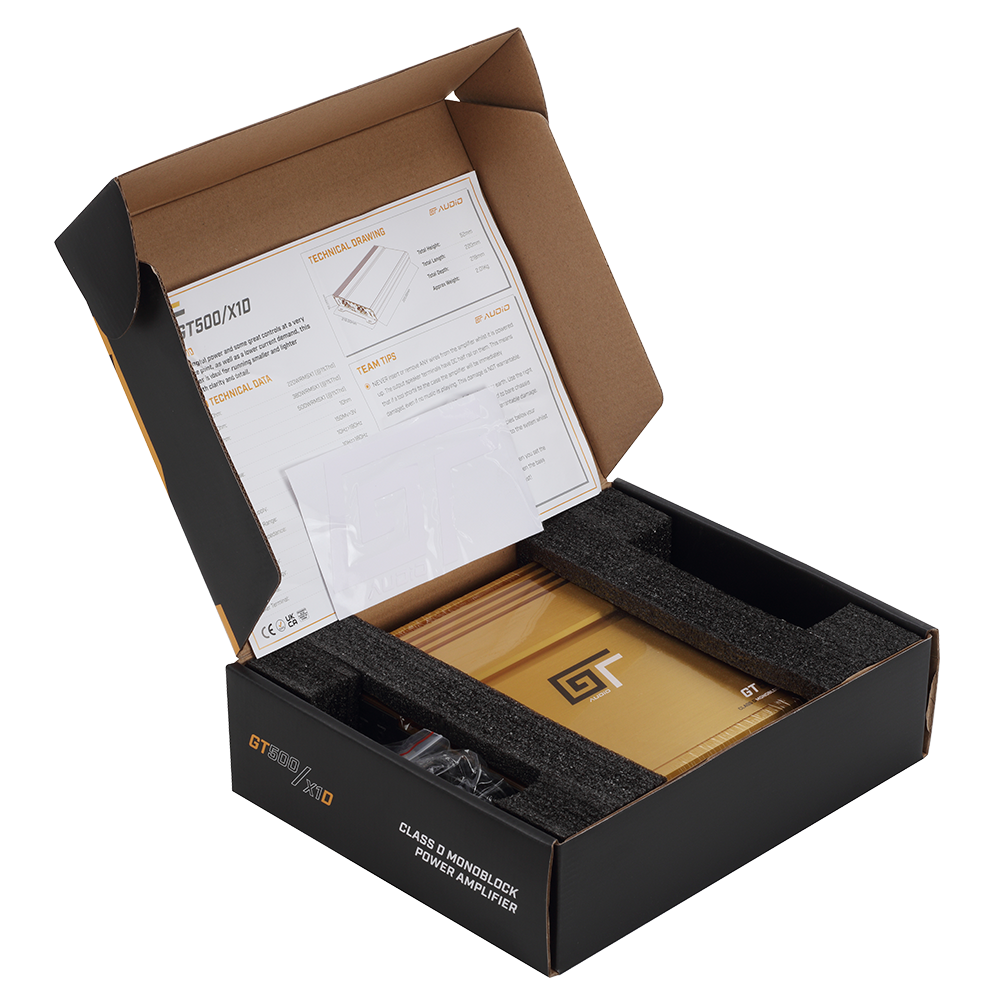

What's In The Box?


  • 1 x Amplifier
  • 1 x Bass Remote Control & Cable
  • 1 x GT Audio Sticker
  • 1 x Documentation Set
What's In The Box?

Version History


Since 7/8/23 the downloadable data sheet and online data matches the screen printing on the amplifier for LPF and subsonic filter. There are detail but not significant differences between the lab report (and hence the paper data sheet included with the amplifier in the box in relation to these 2 fields.)

Key Facts


Product Category Amplifiers
Version 1
Series GT Audio
First Added 08/08/2022
Last Modified 26/01/2024
Barcode 5060905111015
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 2010
Product Height (mm) 52
Product Length (mm) 220
Product Width (mm) 219
Complete Product Pack Weight (g) 2210
Operating Temperature (Degrees Celsius) 0-50
Weatherproof Rating In-Car Only
Warranty (Months) - Private Enjoyment Use Only 12
Sold As Single

Amplifier Data


Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 220x1
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 380x1
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v 500x1
Frequency Response (Hz) 10>190
Signal To Noise Ratio (db) 88

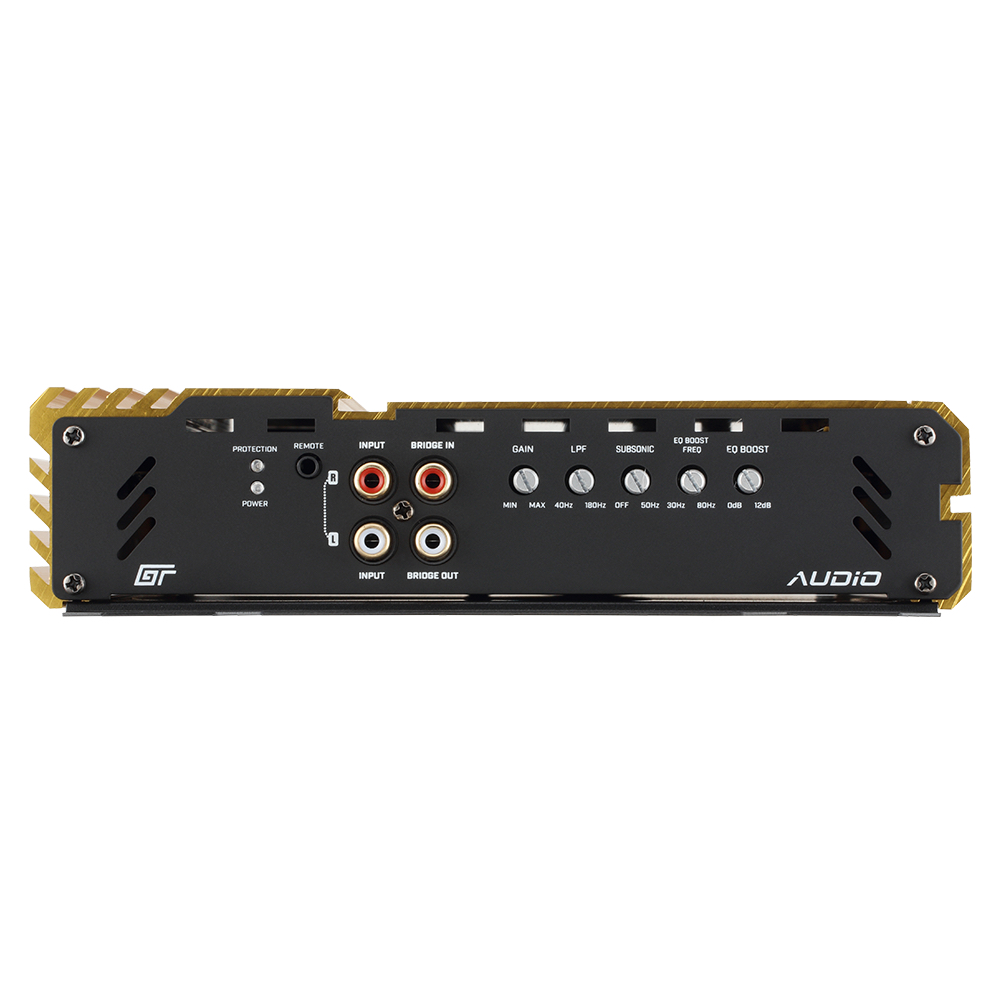

LPF (Hz) 40>180
Bass Boost (Db) 0>12
Boost Frequency (Hz) 30>80
Subsonic Filter (Hz) 0>50
Audio Signal Input Voltage (V) 0.2>6
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 24
Amplifier Topology Class D
Maximum Input Voltage (V) 16

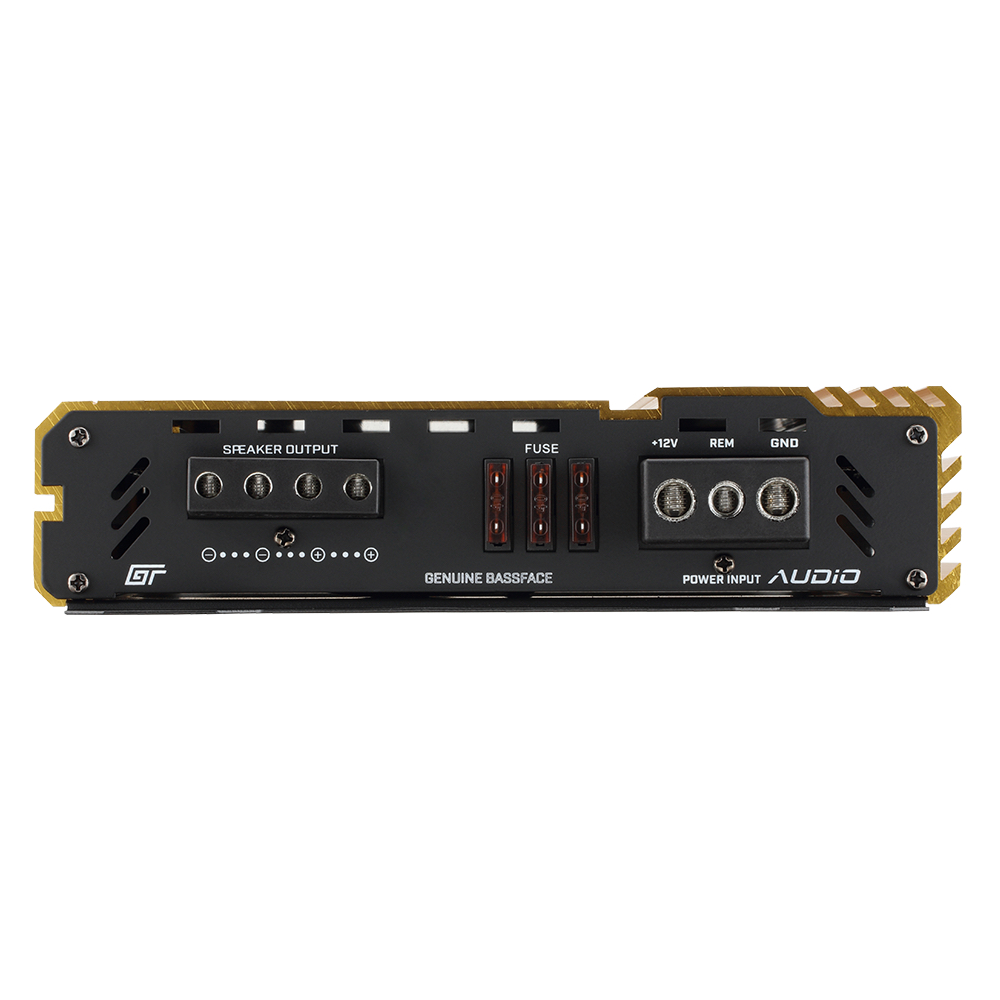

Fuse Rating (Amps) 3x40
Power Wire Input Gauge (AWG) 4
Minimum Recommend Final Load Per Channel (Ohms) 1 Mono
Input Impedance (KOhms) 22
